The next evolution of
human-machine teaming

Get started

Skydio X10D

The sUAS that delivers EW resilience and survivability on the toughest battlefields in the world. Dual-use innovation delivers the best sensors on a drone this size piloted by the most advanced AI in the sky, ready to scale.

45 mph

Max flight speed.

<40 sec

Deployment time.

IP55

Certified against dust and water.

Blue UAS

Cleared list.

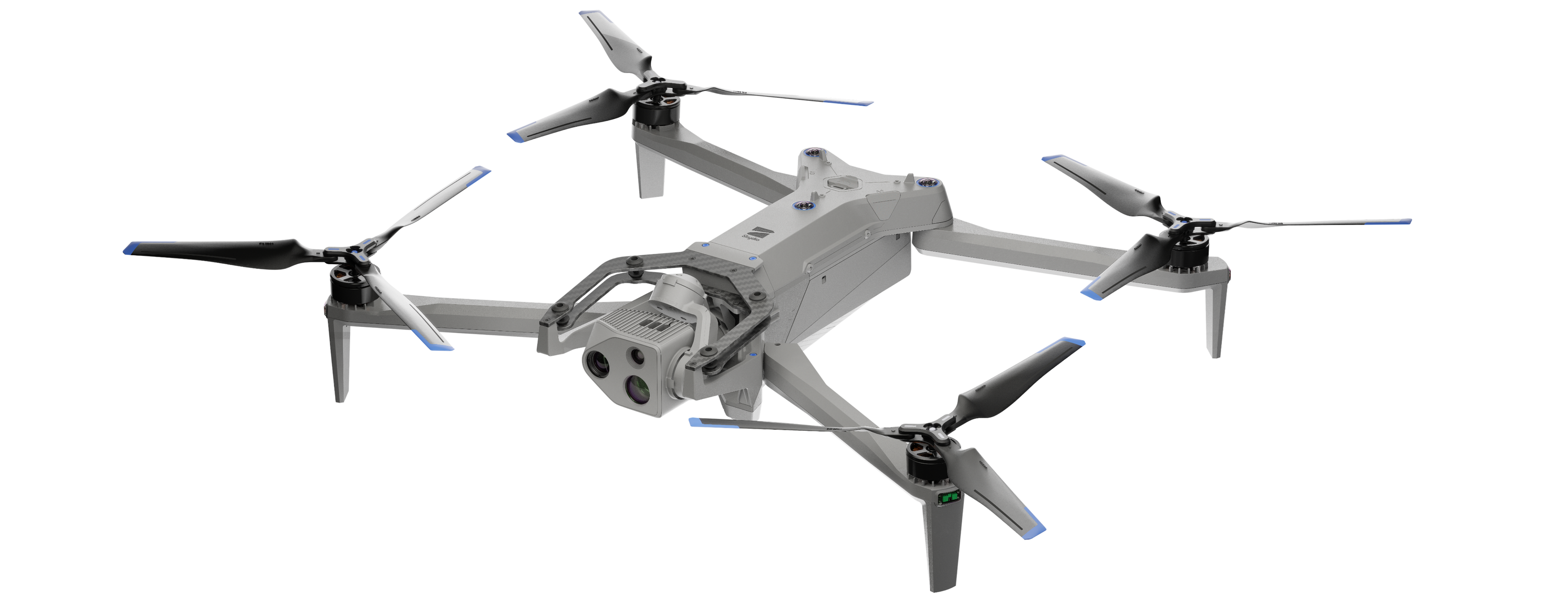

Skydio X10 drone alone on a white background

Resilient and survivable in the face of electronic warfare

Skydio X10D flying and maintaining connectivity even when GNSS is unavailable

Maintain connectivity in the face of GPS and communication jamming – and get your drones back with vision-only return flights

Achieve mission success with the ability to:

  • Dynamically switch channels with a powerful multiband radio
  • Increase survivability in GNSS-denied or spoofed environments with Visual Inertial Odometry (VIO) at high altitudes up to several kilometers
  • Utilize map coordinates for navigation even when GNSS is unavailable

Visionary cameras to get the job done

Packing more megapixels and better optics than any drone its size, Skydio X10D boasts modular, high-resolution visual and radiometric thermal cameras. So you can gain decision-making advantage with precise, accurate information.

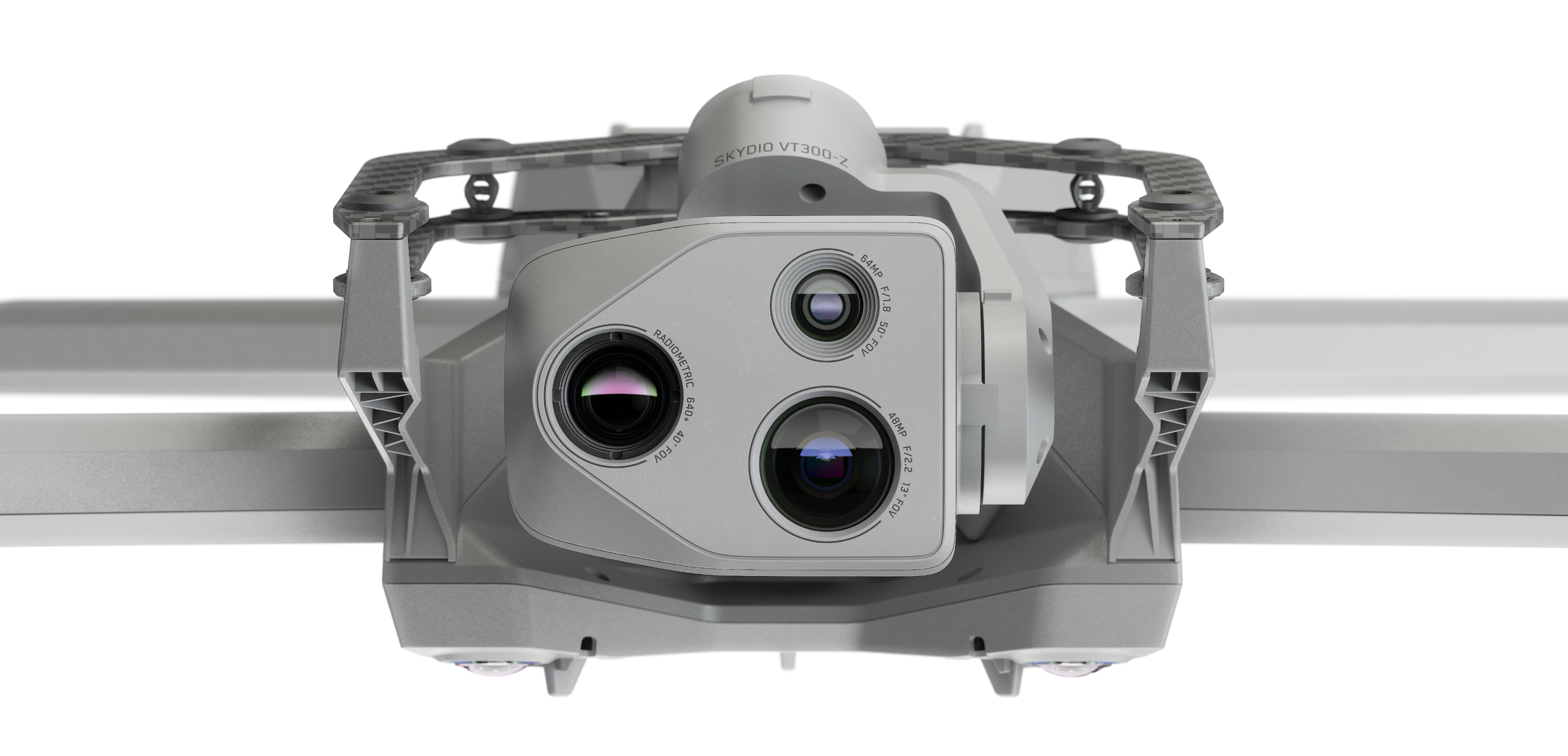

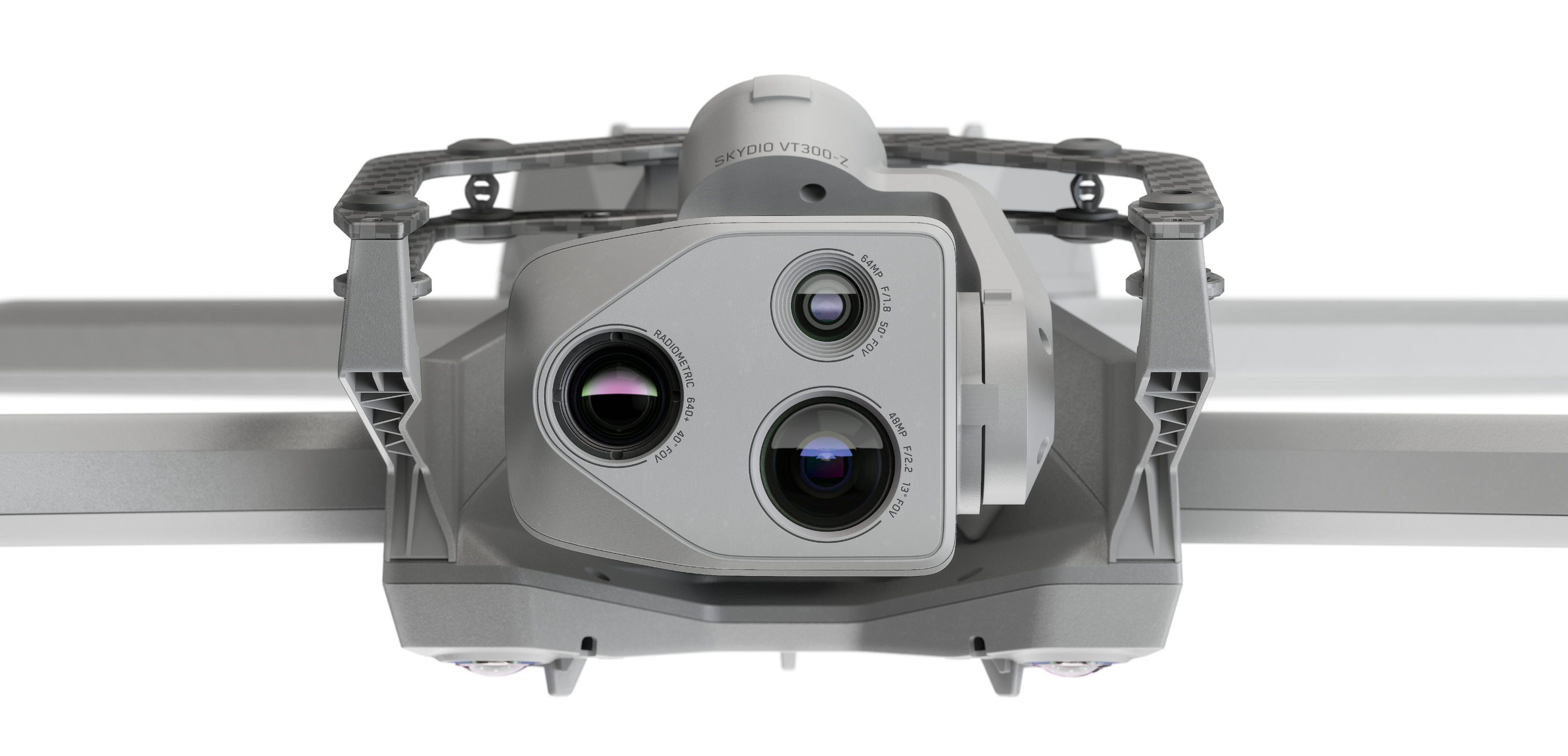

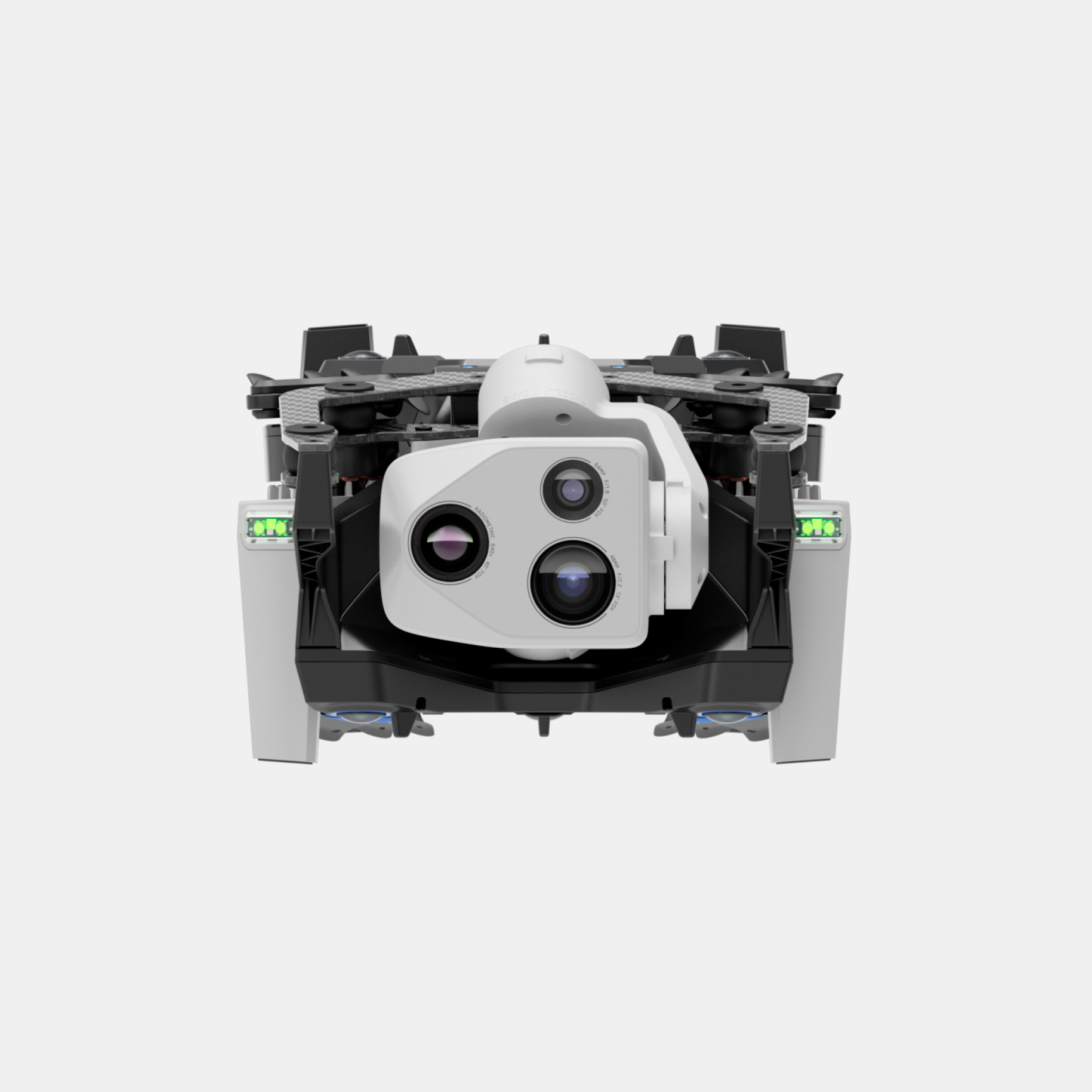

close image of Skydio X10 drone VT300Z sensor package

The right sensors for your mission

Skydio X10 sensors

VT300-Z

Narrow camera
46 mm eq.
64 MP
f/1.8
50° field of view
Telephoto camera
190 mm eq.
48 MP
f/2.2
13° field of view
Radiometric thermal camera
60 mm eq.
640 x 512 px
41° field of view
<30 mK sensitivity
Skydio X10 sensors

VT300-L

Narrow camera
46 mm eq.
64 MP
f/1.8
50° field of view
1" Wide Camera
20 mm eq.
50 MP
f/1.95
93° field of view
Radiometric thermal camera
60 mm eq.
640 x 512 px
41° field of view
<30 mK sensitivity
Flashlight
22 lux at 3 meters

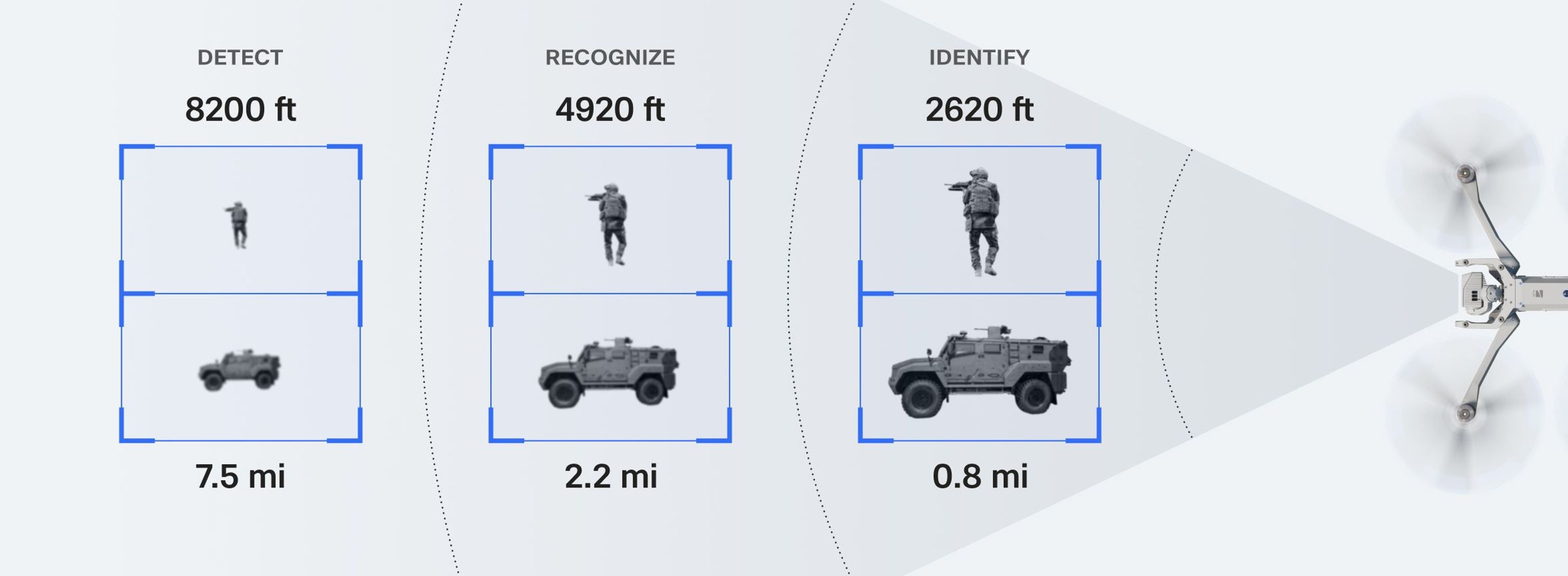

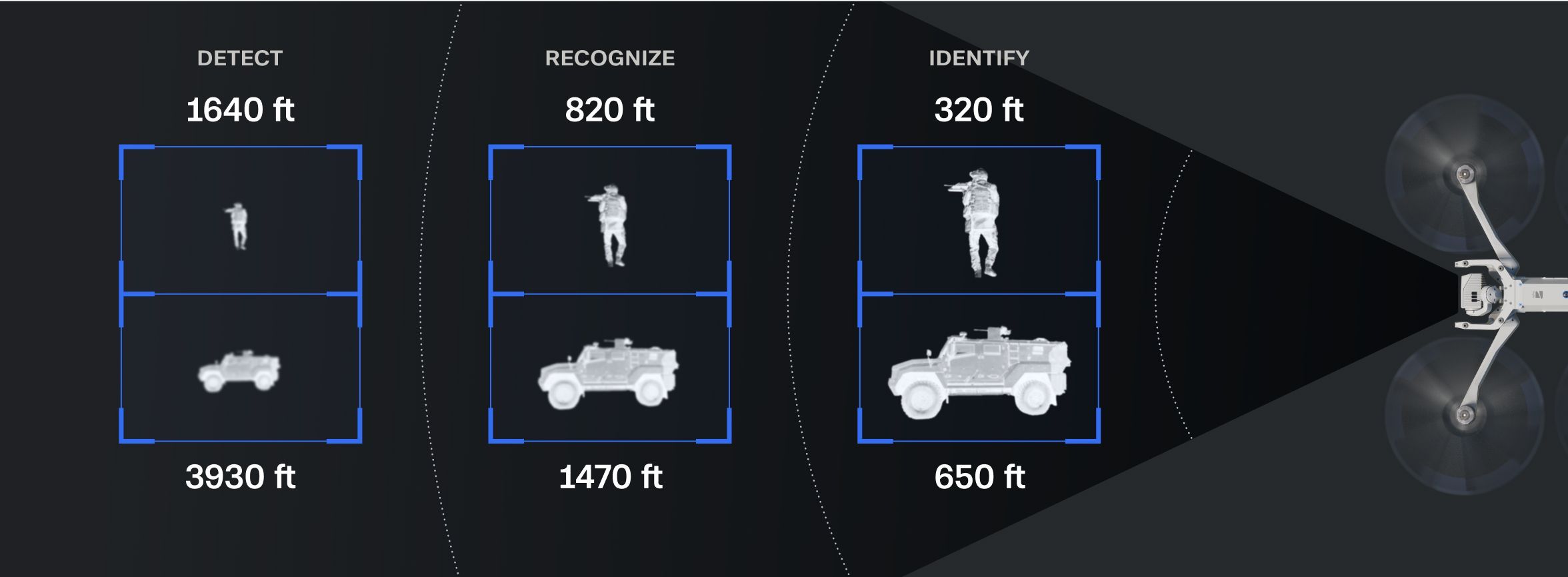

See what’s coming, from a distance

The telephoto camera on the VT300-Z sensor package enables you to detect objects, vehicles, and humans as soon as they enter your field of view — giving you the visual clarity to make to make critical decisions quickly.

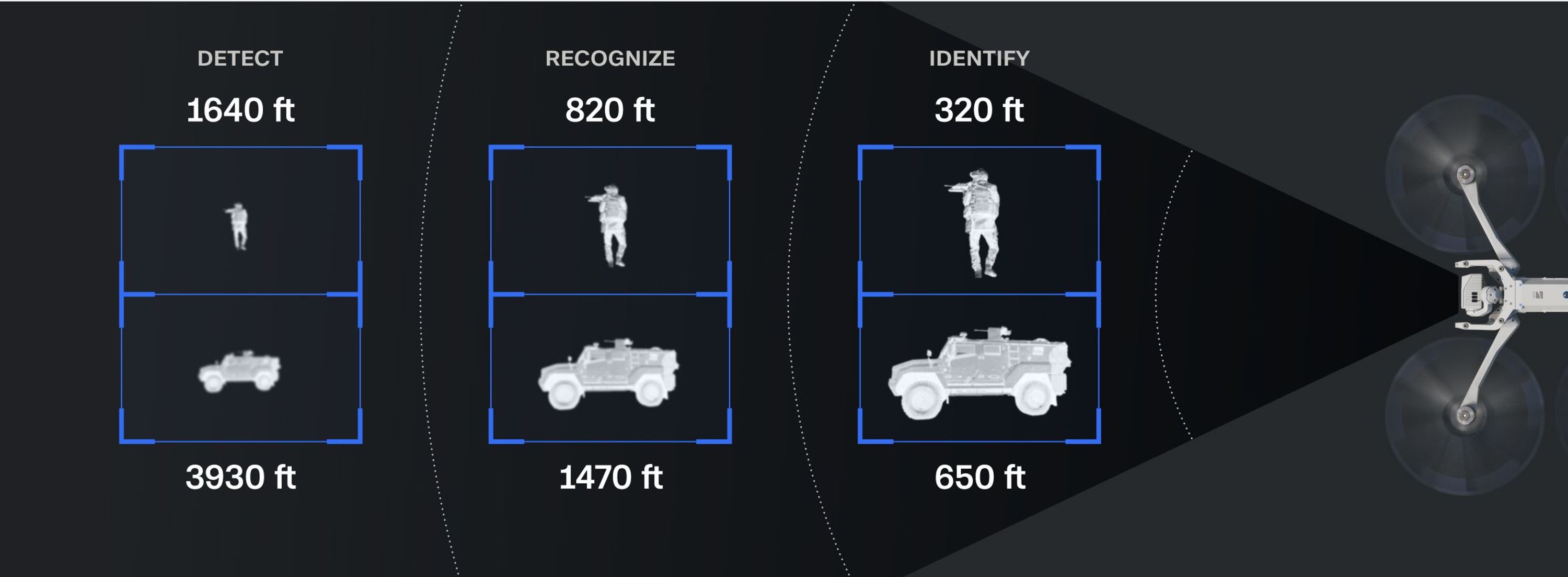

graphic showing what Skydio X10 drone's sensors can see from various distances

Details for your decision-making advantage

Put an entire operational area in focus for mission coordination

image showing field of view of Skydio X10D national security drone with VT300Z sensor package using the narrow camera module

Taken with the VT300-Z. Narrow camera module
46 mm, f/1.8, 64 MP, 50° field of view

Capture sub-millimeter-level precision in corrosion inspections.

Skydio drone capture of corrosion with sub-millimeter-level precision

Taken with the VT300-L. 1” Wide module & onboard light
20 mm, f/1.95, 50 MP, 93° field of view

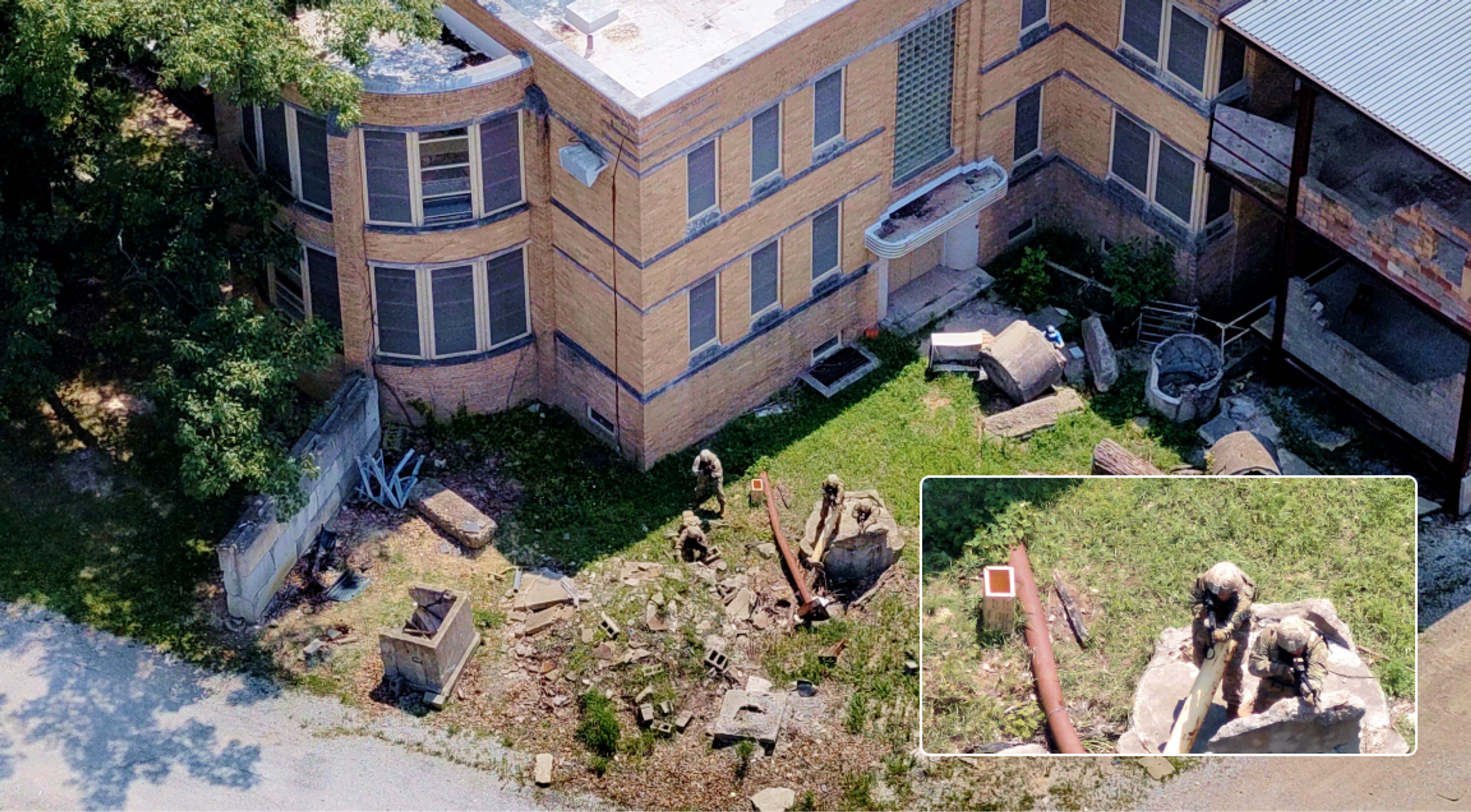

Observe a person at 1km range to identify indicators of hostile act/hostile intent.

image from Skydio X10D drone identifying and observing adversary activity from 1km distance

Taken with the VT300-Z. Telephoto lens
190 mm, f/2.2, 48 MP, 13° field of view

Skydio X10D sensor packages supercharge your sensing capability, enabling you to capture mission-relevant data in high-definition. Because life or death decisions depend on information that is timely, relevant, and accurate.

Category best thermal imaging

The Skydio X10D is the first small UAS ever to integrate a Teledyne FLIR Boson+ sensor, delivering the highest quality thermal imaging. Capable of resolutions of 640x512 and offering increased sensitivity down to <=30mK, X10D delivers more accurate radiometric readings, anywhere, anytime.

graphic showing what detail Skydio X10 drone's sensors can see from various distances

With thermal module

Unmatched thermal sensitivity

The Boson+ sensor is 40% more sensitive than comparable thermal units on the market

Unparalleled image clarity

640x512 thermal resolution combined with radiometry and advanced AGC enables the clearest thermal images

Sharper, clearer imagery

Onboard image optimization algorithms enhance detail in distant objects and improve overall aesthetic for easier interpretations

Unrivaled clarity in hot or cold, day or night

Detect temperature differences, even on a hot day.

a thermal aerial view from a Skydio X10 drone

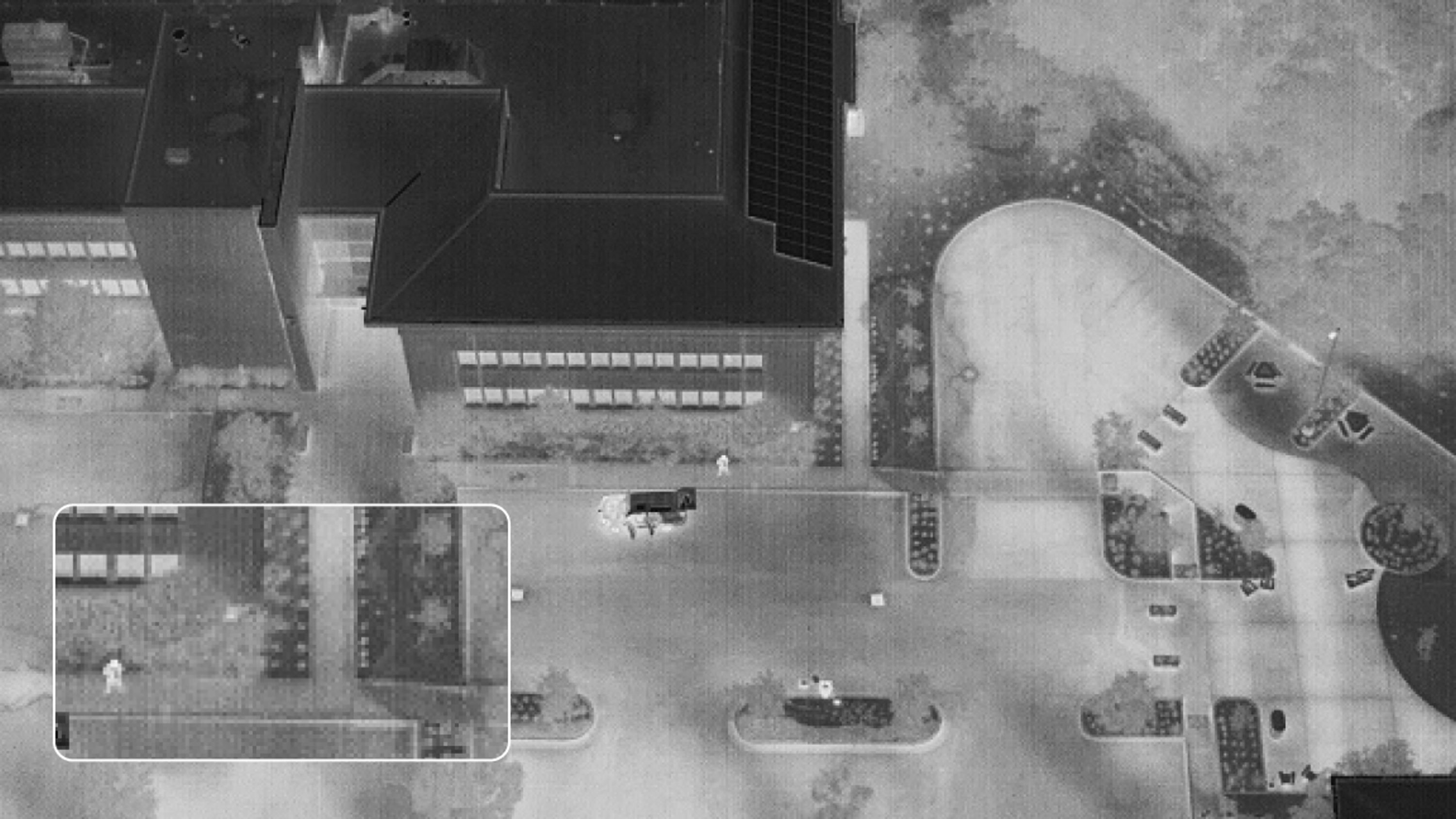

Detect a person on warm concrete, in complete darkness.

a thermal aerial view from a Skydio X10 drone

Onboard AI.
Off-the-charts capability.

Reduce cognitive load for faster decision-making. With a drone that recognizes its surroundings, automates data capture, and gets smarter over time.

Always follow the Skydio Guidelines when flying X10D

X10D boasts unrivaled computing power to support team operations and inform the best decisions in real-time. Six custom-designed navigation lenses provide 360-degree visibility, eliminating blind spots so you can fly fearlessly.

10X

more computing
power than previous
generation

10X

more effective
navigation pixels than
previous generation

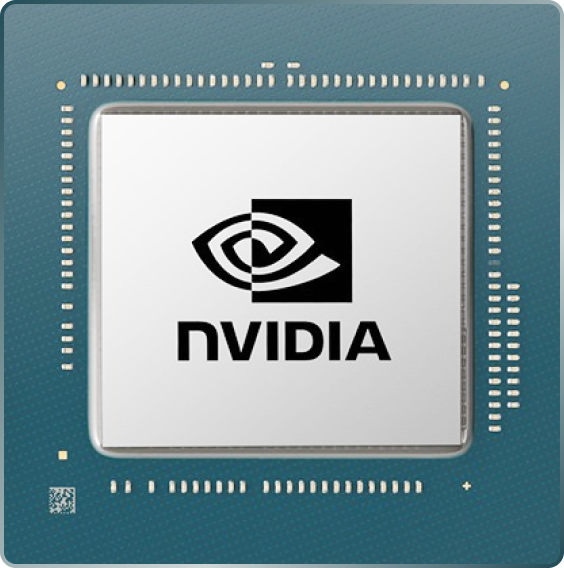

Nvidia chip used in Skydio drones

Onboard
NVIDIA Jetson
Orin GPU

Fly with ease

Fly the most complex missions confidently, even in contested environments. With superior AI flight assistance and obstacle avoidance, Skydio X10D reduces operators’ cognitive load and requires a fraction of the training hours demanded by traditional drones.

Automate mission
essential tasks

Use powerful onboard computing to increase the speed and accuracy of mission essential tasks.

  • Identify points of interest with Crosshair Coordinates.
  • Follow persons of interest with Subject Tracking.
  • Provide mobile overwatch with Scout.
  • Efficiently build 2D maps and 3D models onboard, in real time. No extra systems needed.

Get smarter over time

Skydio X10 is loaded with the computing capacity for its AI data capture and synthesis capabilities to grow over time.

And do it all, in the dark

Visionary autonomous obstacle avoidance for night operations: Mission success could depend on it.

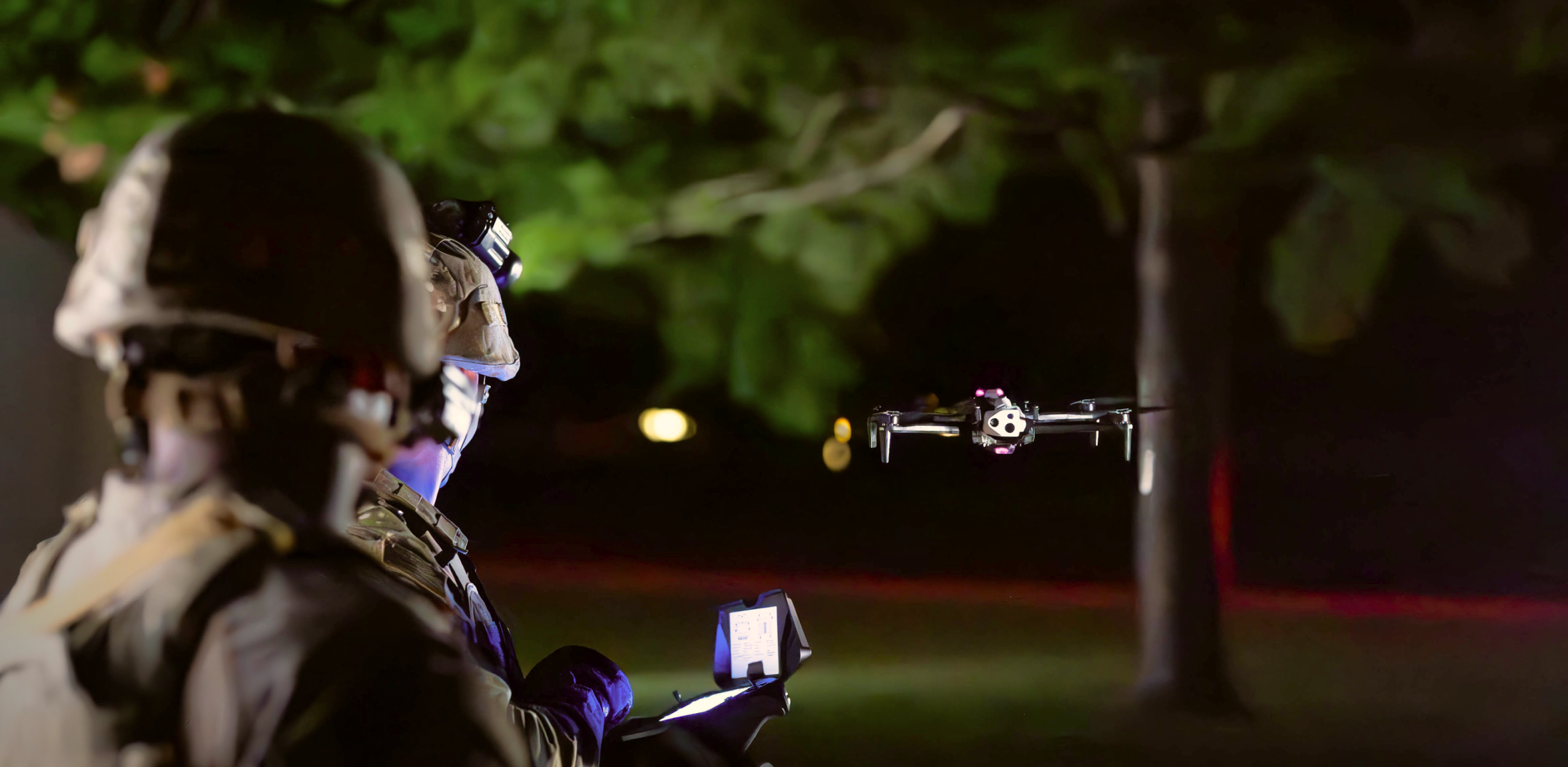

Skydio X10D drone with nightsense used for night missions and flights in the the dark

Another industry first: Autonomy in the dark.

Confidently operate 24/7 in NightSense mode for zero-light navigation — only available with the groundbreaking Skydio X10D.

See in the dark. Skydio X10D uses visible or infrared illumination to avoid obstacles, understand its environment, and make the right decisions, every time.

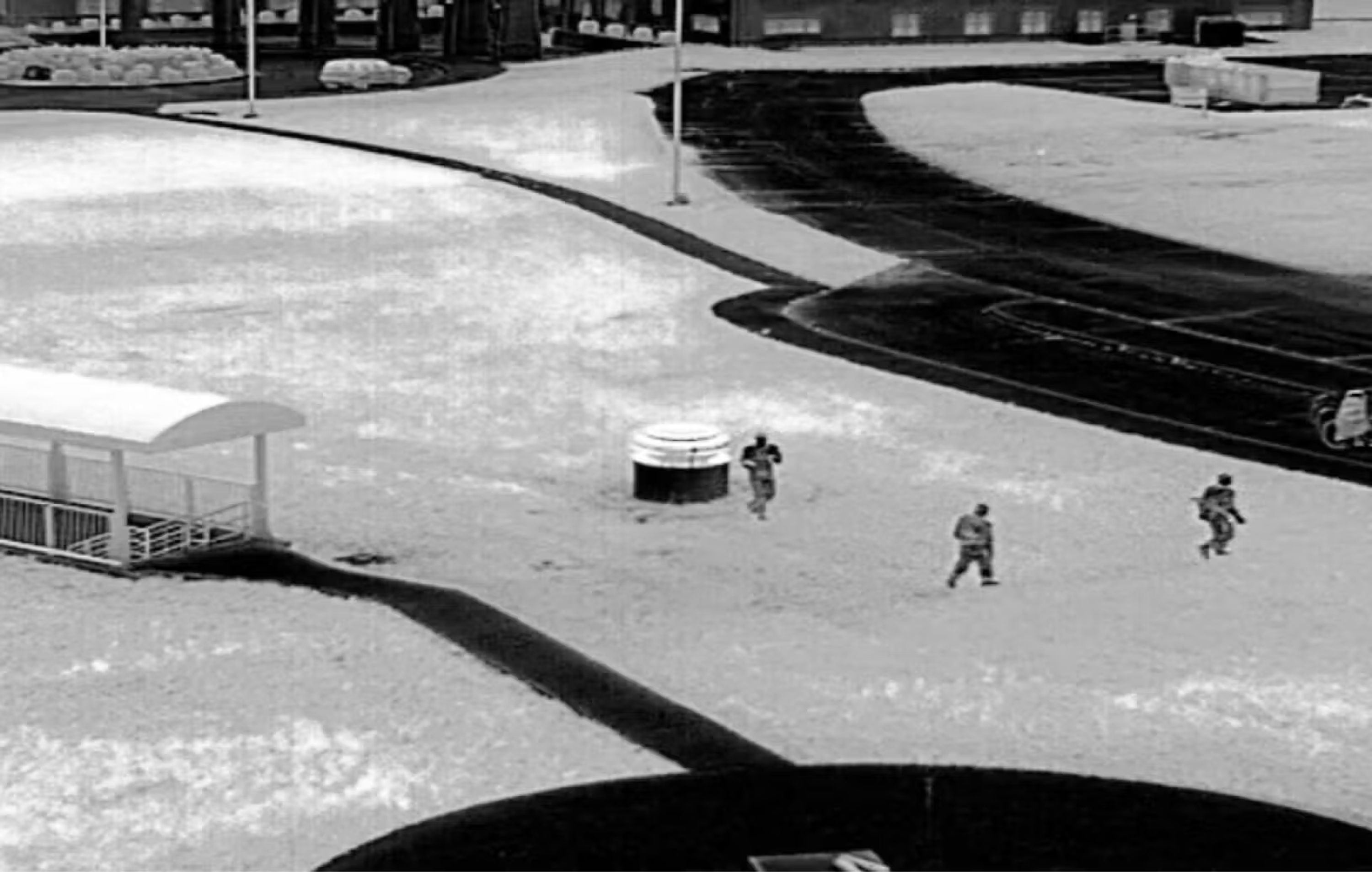

Skydio X10D IR thermal image of warfighters

IR Navigation Camera and Illuminator.
Using IR illumination, the X10D averts visibility at night.

Visible Light Nav Cam and Illuminator.
Using visible illumination, the X10D provides bright 360-degree light.

bright 360-degree light for Skydio X10D

Visible/IR light Module
Using visible illumination, the X10D provides bright 360-degree light.

video of person

Learn more about the innovations behind NightSense.

Explore Skydio Autonomy

Ultimate control becomes second nature

Fly however you want

Fly with a Skydio controller

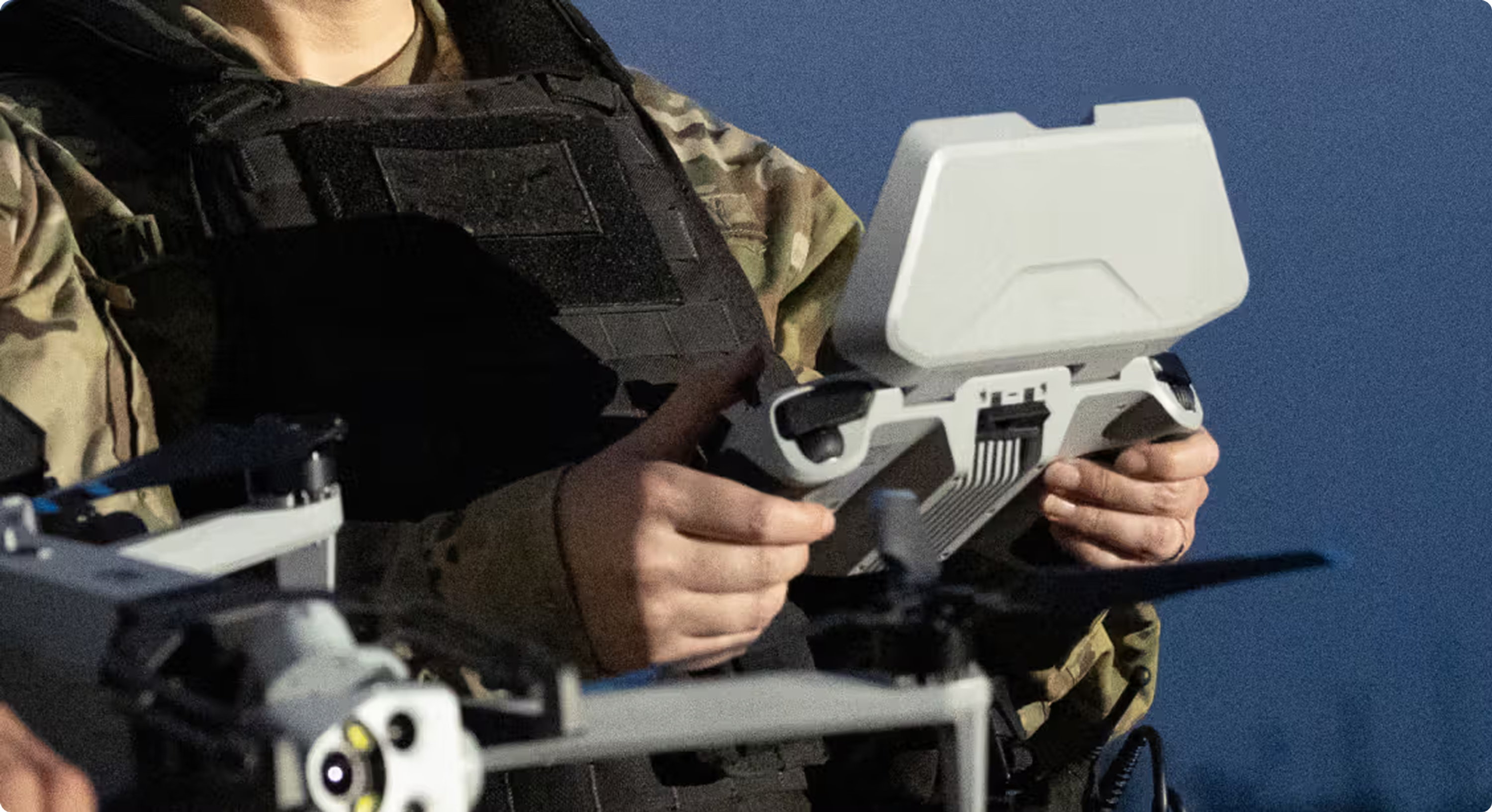

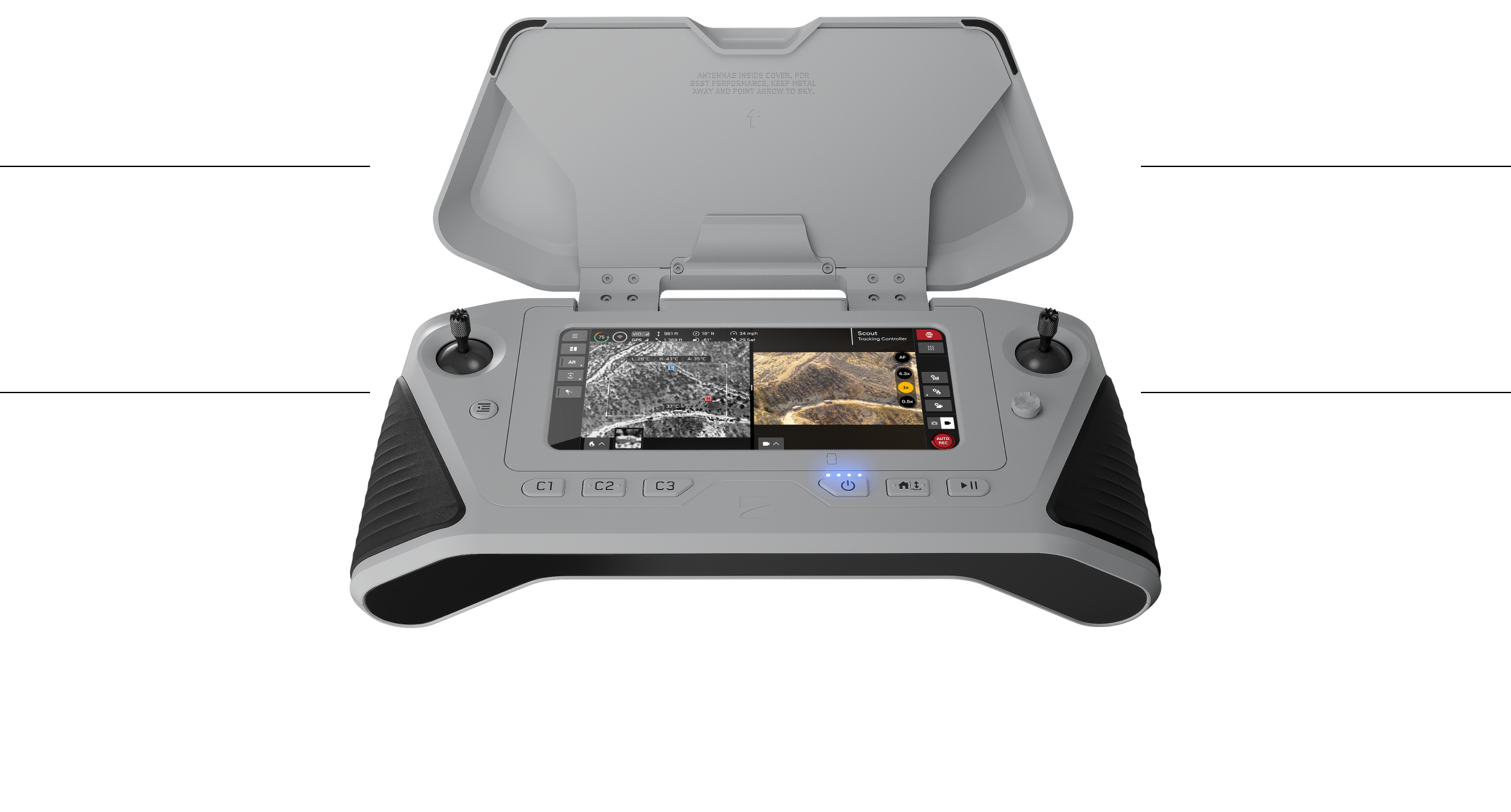

soldier's hands holding Skydio X10D controller with Skydio X10D drone in the foreground

Plan, execute, and review any mission with the Skydio X10D Controller and Remote Flight Deck, our powerful flight application.

Fly with a 3rd-party controller

a Skydio autonomous drone controller

Skydio X10D can operate with 3rd-party controllers including those from Tomahawk.

Fly in diverse EM environments with Skydio Connect

solider with Skydio drone on hand

The multiband radio on the X10D offers a wide range of flexibility, allowing users to select specific frequencies tailored to local regulatory frameworks and operating environments. With support for multiple frequency bands and dynamic channel switching, Skydio Connect can overcome limitations such as interference, attenuation, or bandwidth constraints that can be present in a single frequency band.

An operator experience forged by thousands of flying hours.

Plan, execute, and review every type of mission on the
redesigned Skydio Flight Deck app.

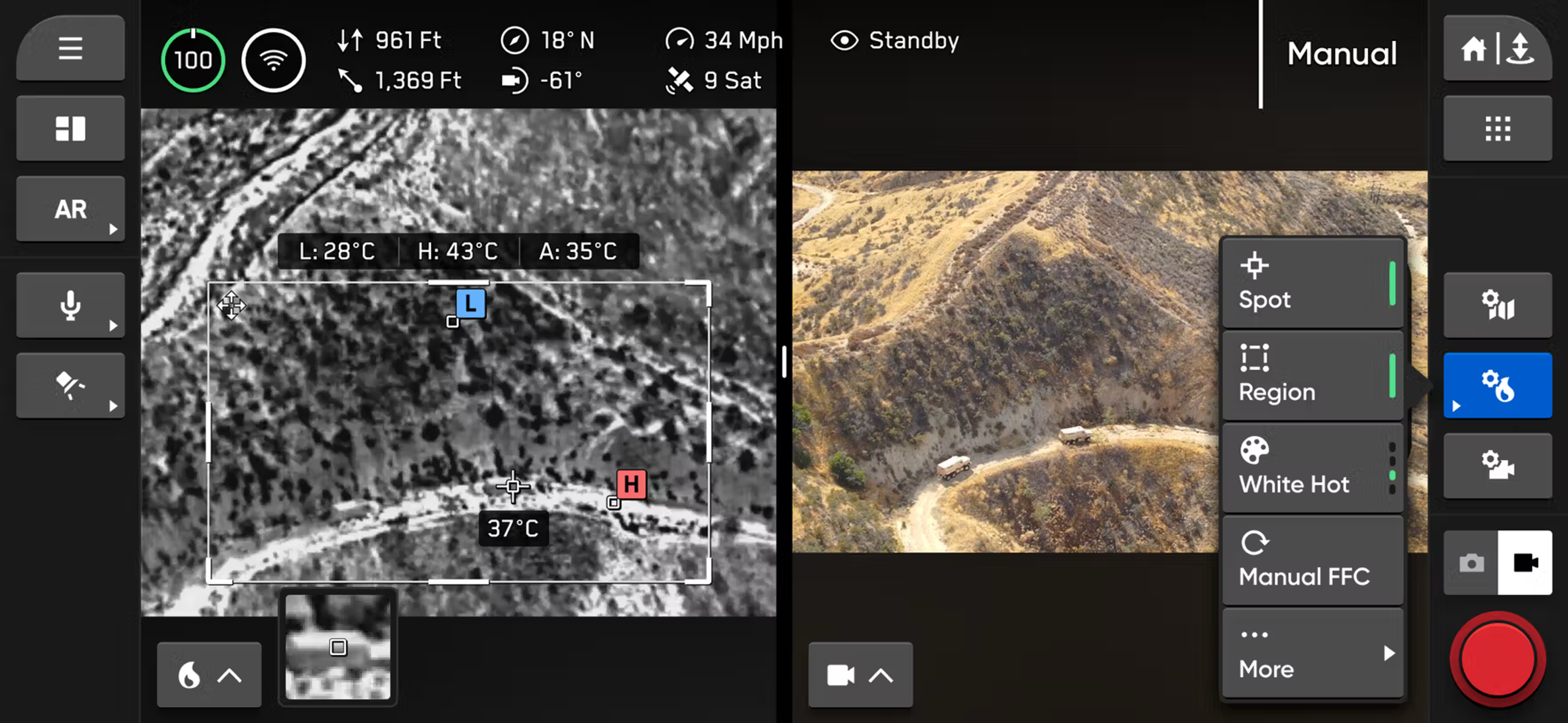

image from Skydio drone controller showing live stream of a convoy with both thermal and visual images

A pro-grade interface built from the ground up. Spend less time navigating menus to ensure faster operation during critical missions.

Do more with less distractions.

image from Skydio drone controller showing live stream of convoy

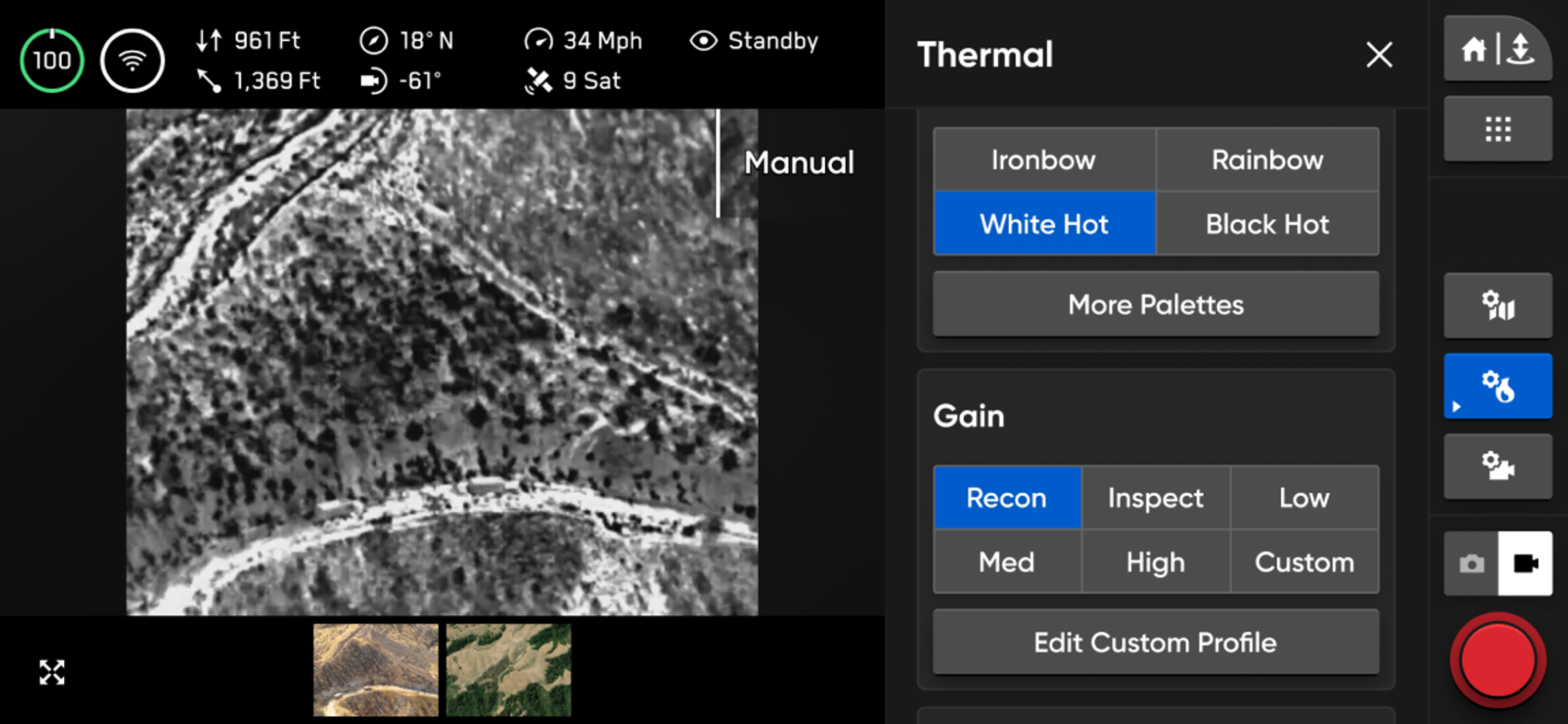

Modify the interface to suit your needs. See more and do more, with swappable layouts and customizable telemetry.

controller interface showing a thermal image of a convoy in hilly terrain as seen from a Skydio national security drone

Always see what your drone sees. Maintain visibility of the drone's live preview, even while adjusting settings or receiving notifications.

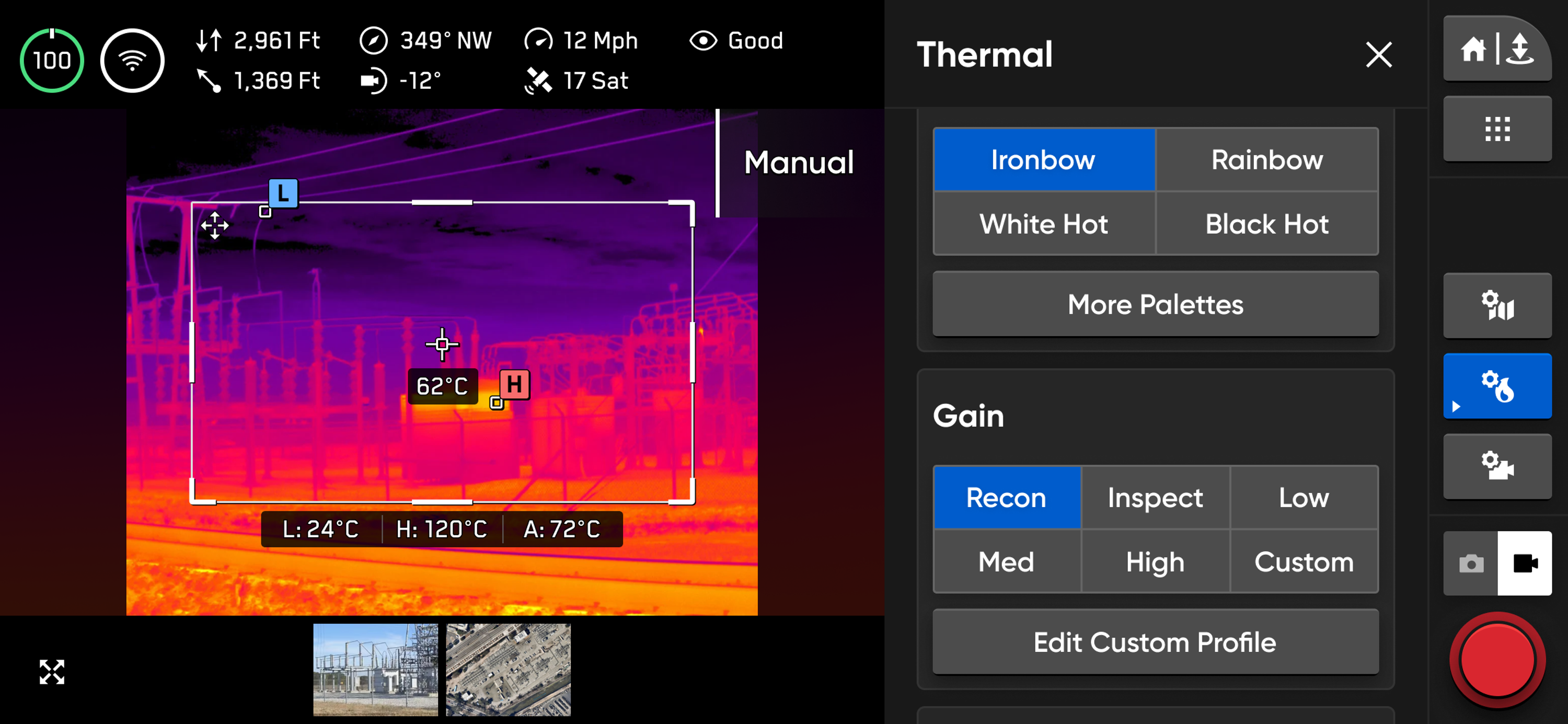

Skydio drone controller interface showing a thermal image of an electrical substation

Quickly access key datapoints. Get immediate access to thermal settings, attachment actions, and AR overlays.

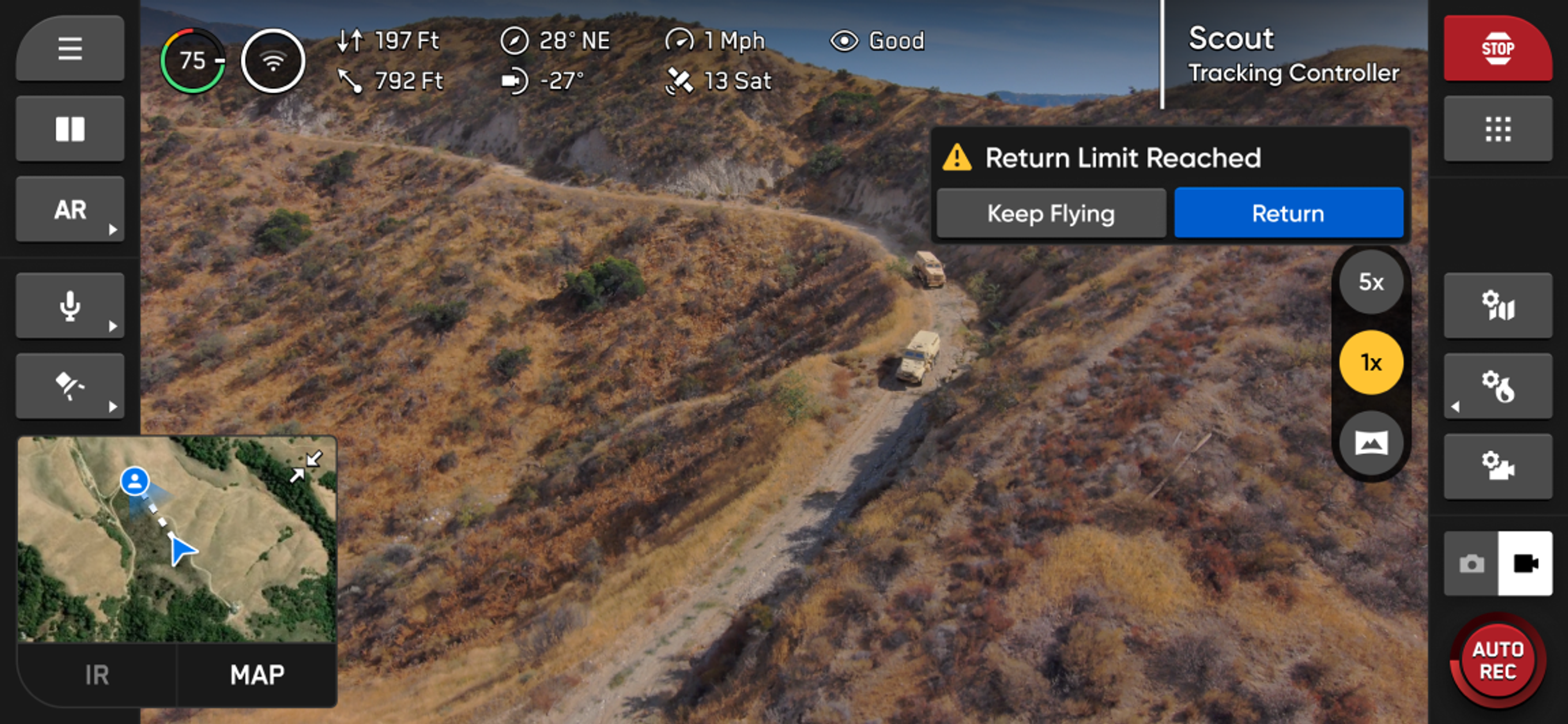

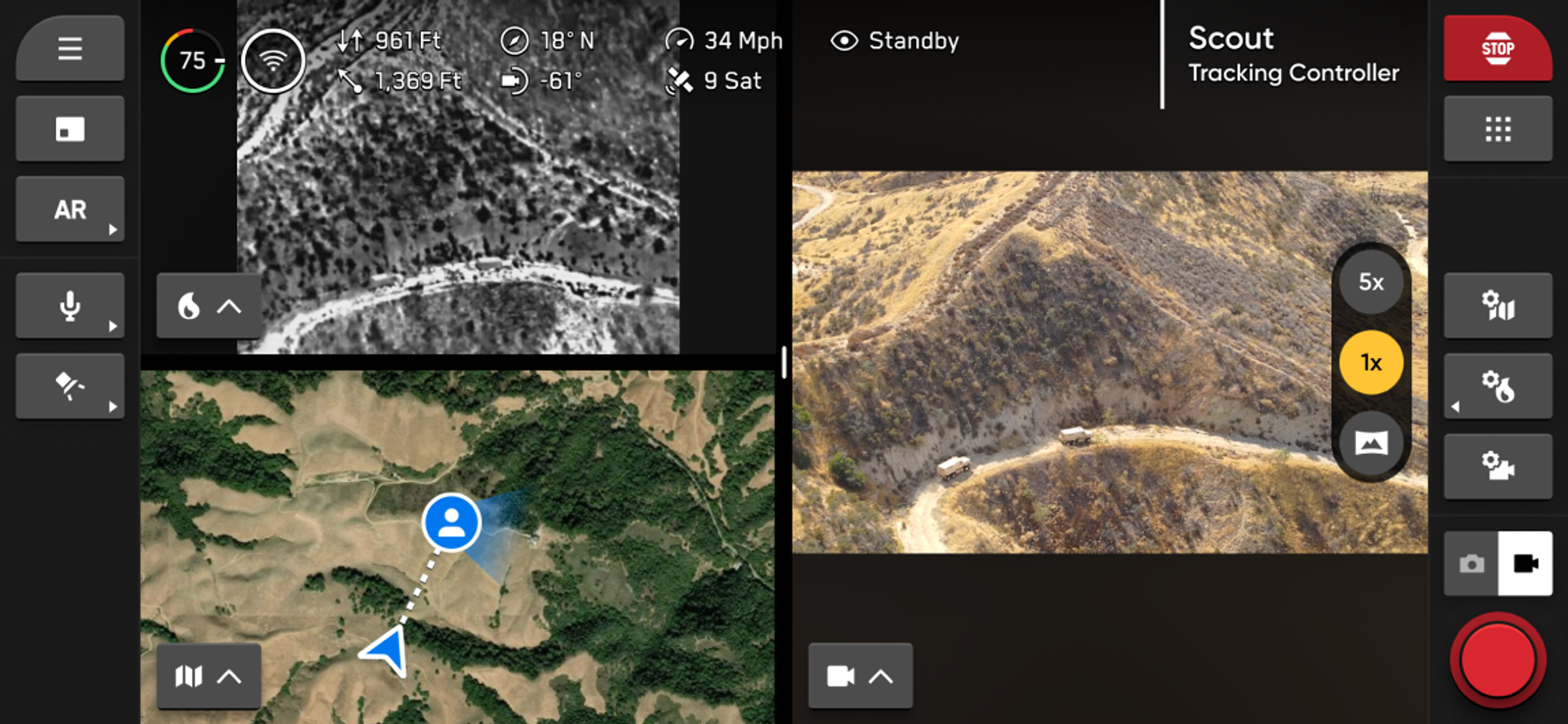

feed from Skydio drone using Scout feature

See when conditions are changing. Receive notifications to keep track of fluctuating environmental conditions.

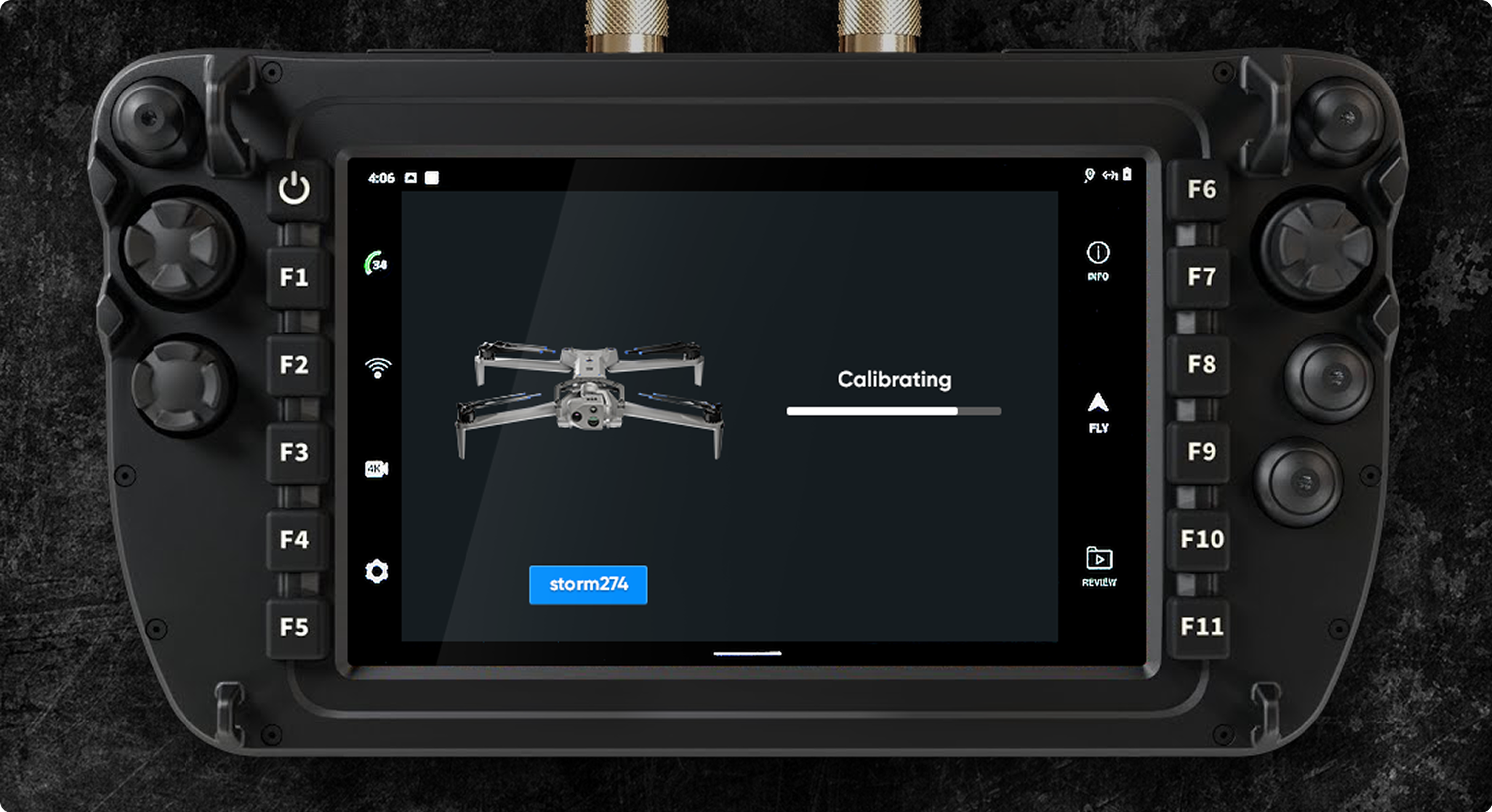

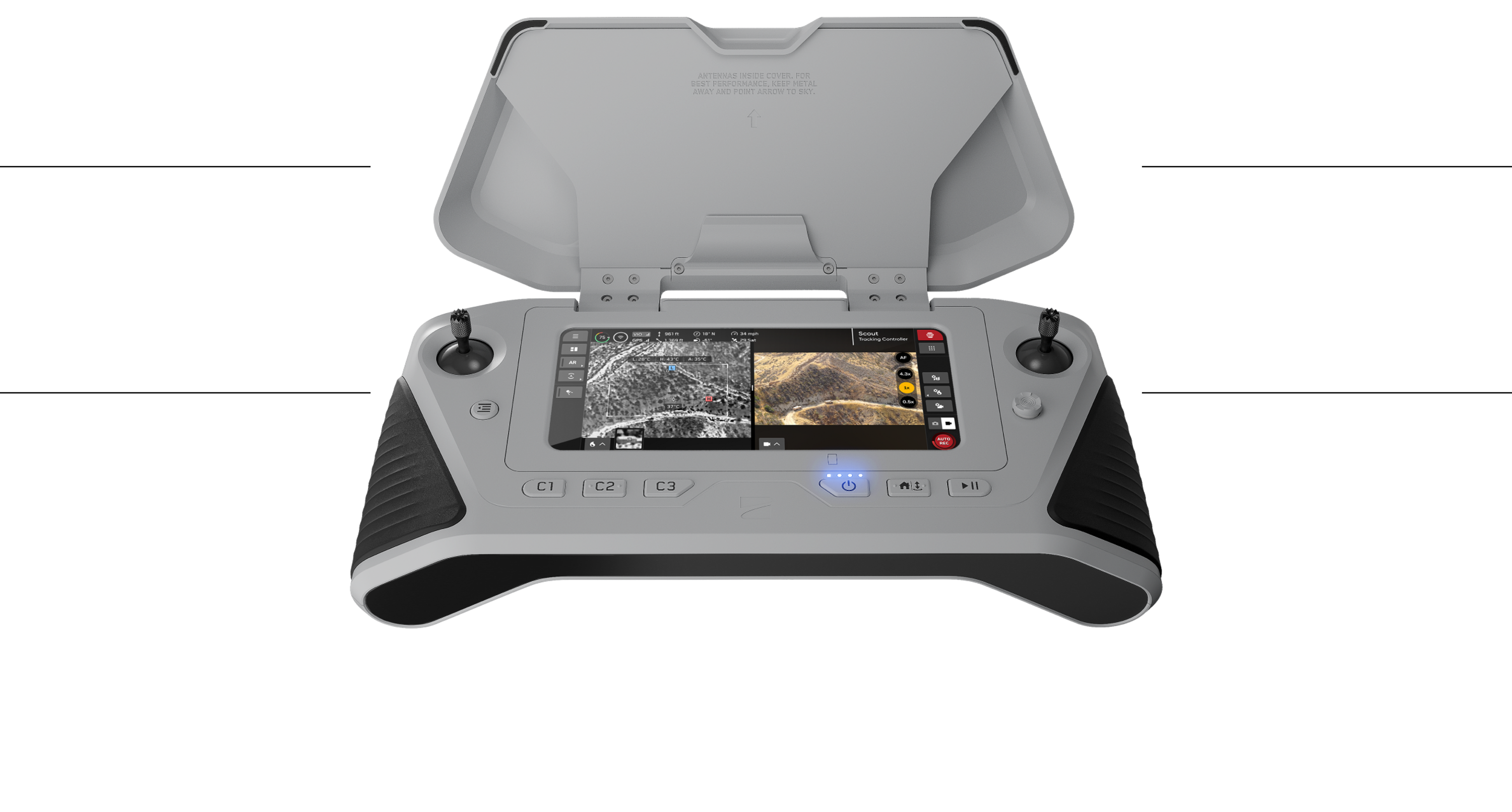

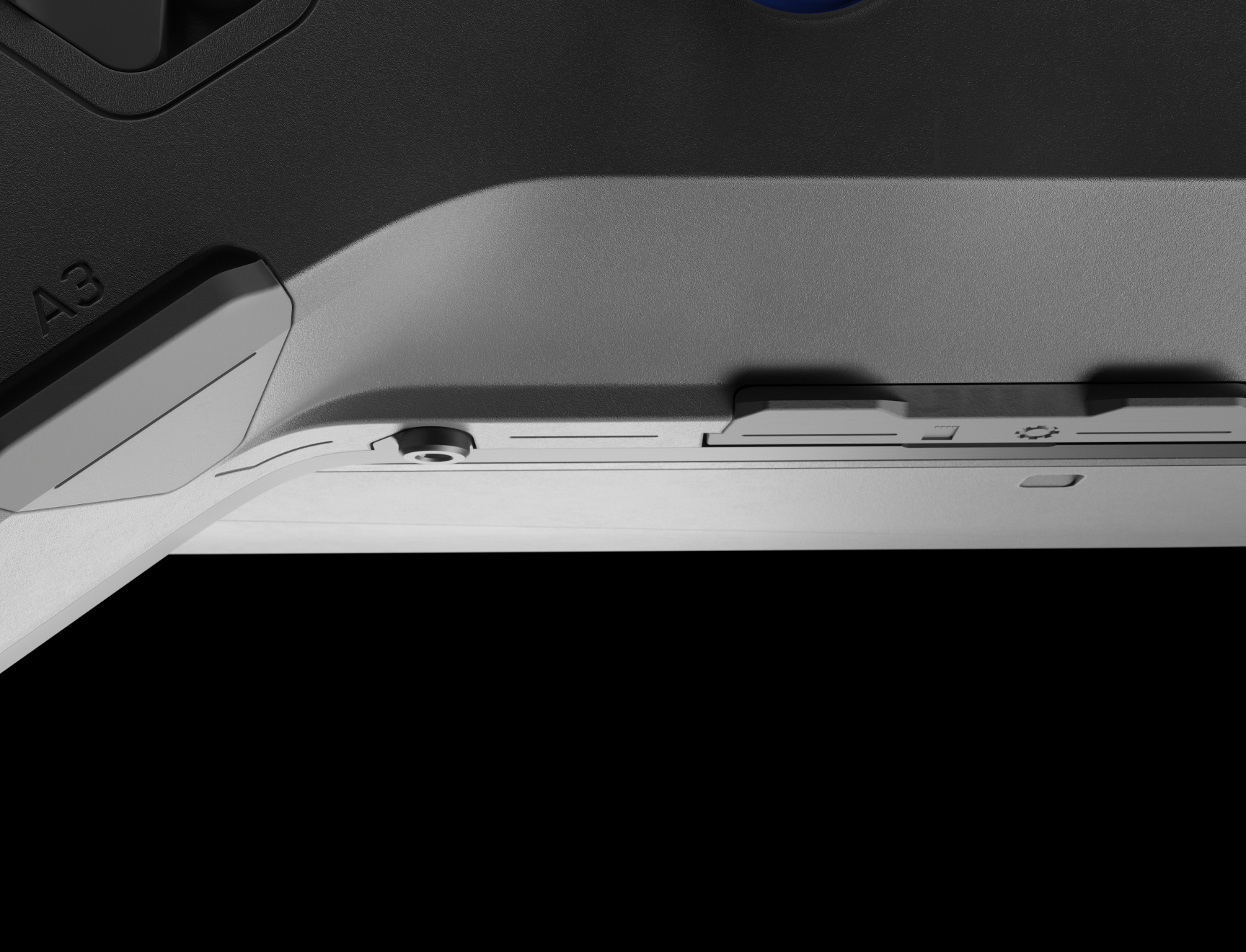

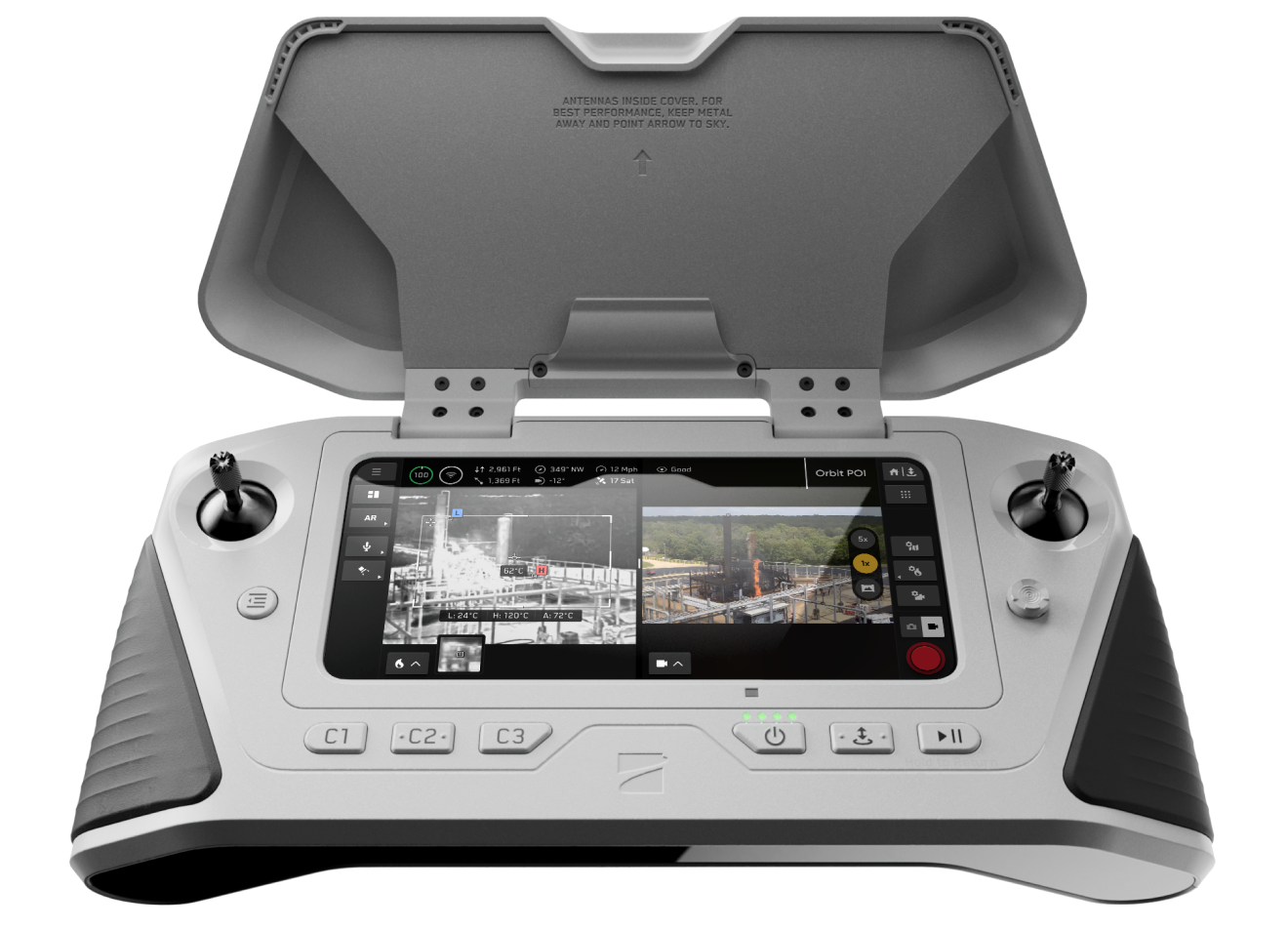

Precision at your fingertips.

Upgraded connectivity, customization options, and a rugged design lets you respond to any situation with total control.

Skydio drone controller Skydio drone Controller

Customizable controls.
Get one-touch access to frequently used features.

Ruggedized hardware.
IP54 weatherproofing protects from harsh conditions.

Improved daytime visibility.
With 60% increase in screen brightness.

Robust connectivity.
Supports Skydio Connect for low-latency control from anywhere.

Integrated apps
For better human-machine teaming

a target

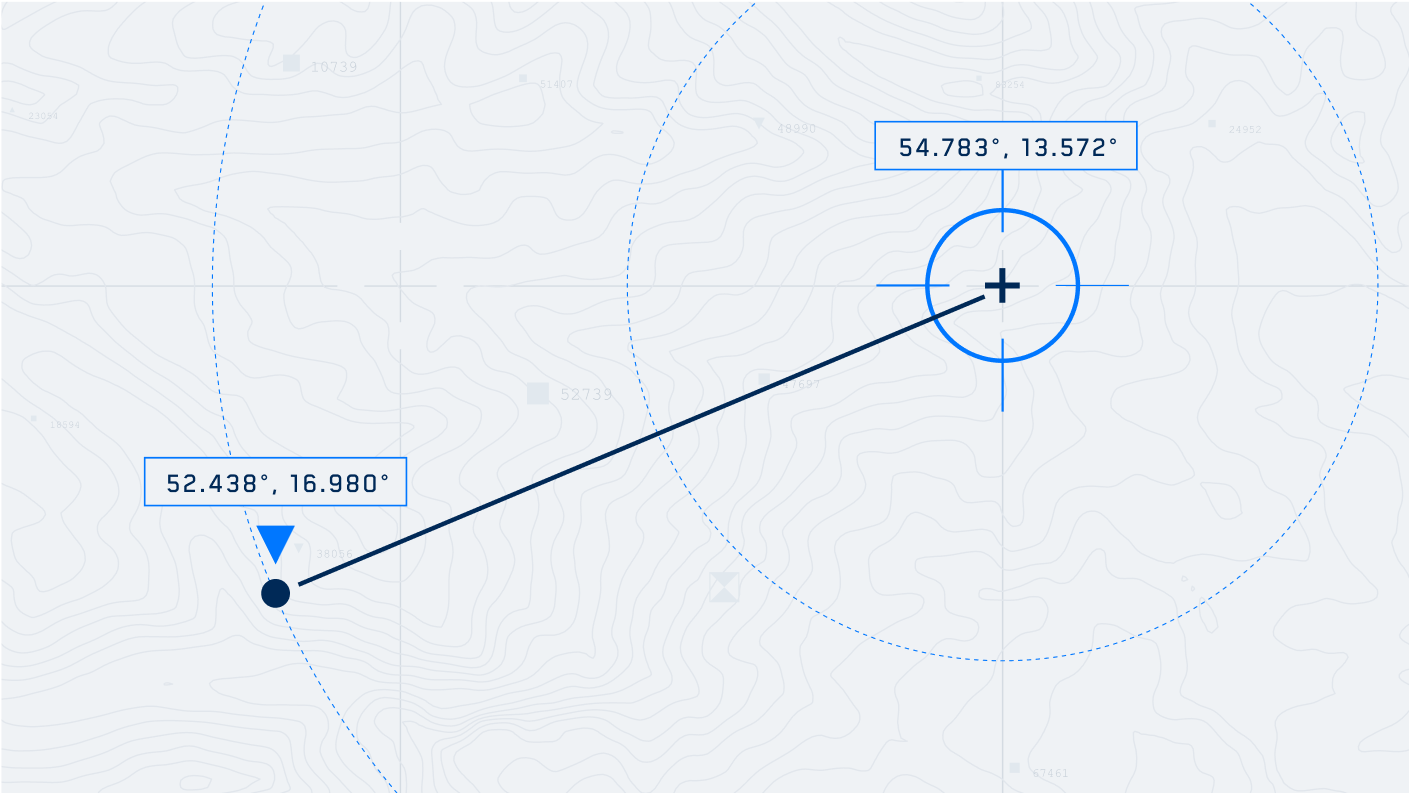

Crosshair Coordinates

Displays real-time ground-level coordinates using DTED maps on video overlay.

graphic of Skydio Crosshairs Coordinates software

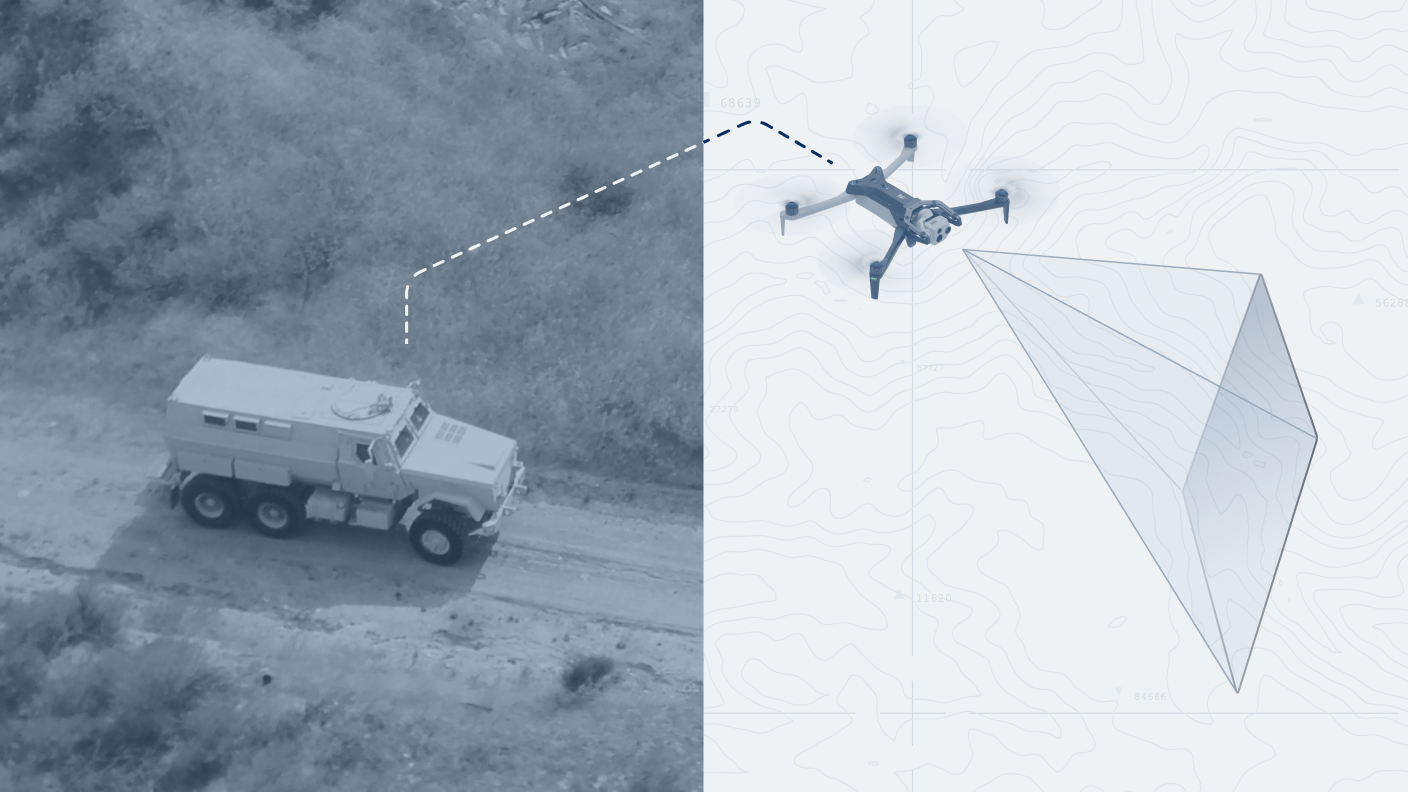

Scout App

Safely identify threats to your convoy.

graphic showing Skydio Scout capability, with drone viewing ahead of convoy

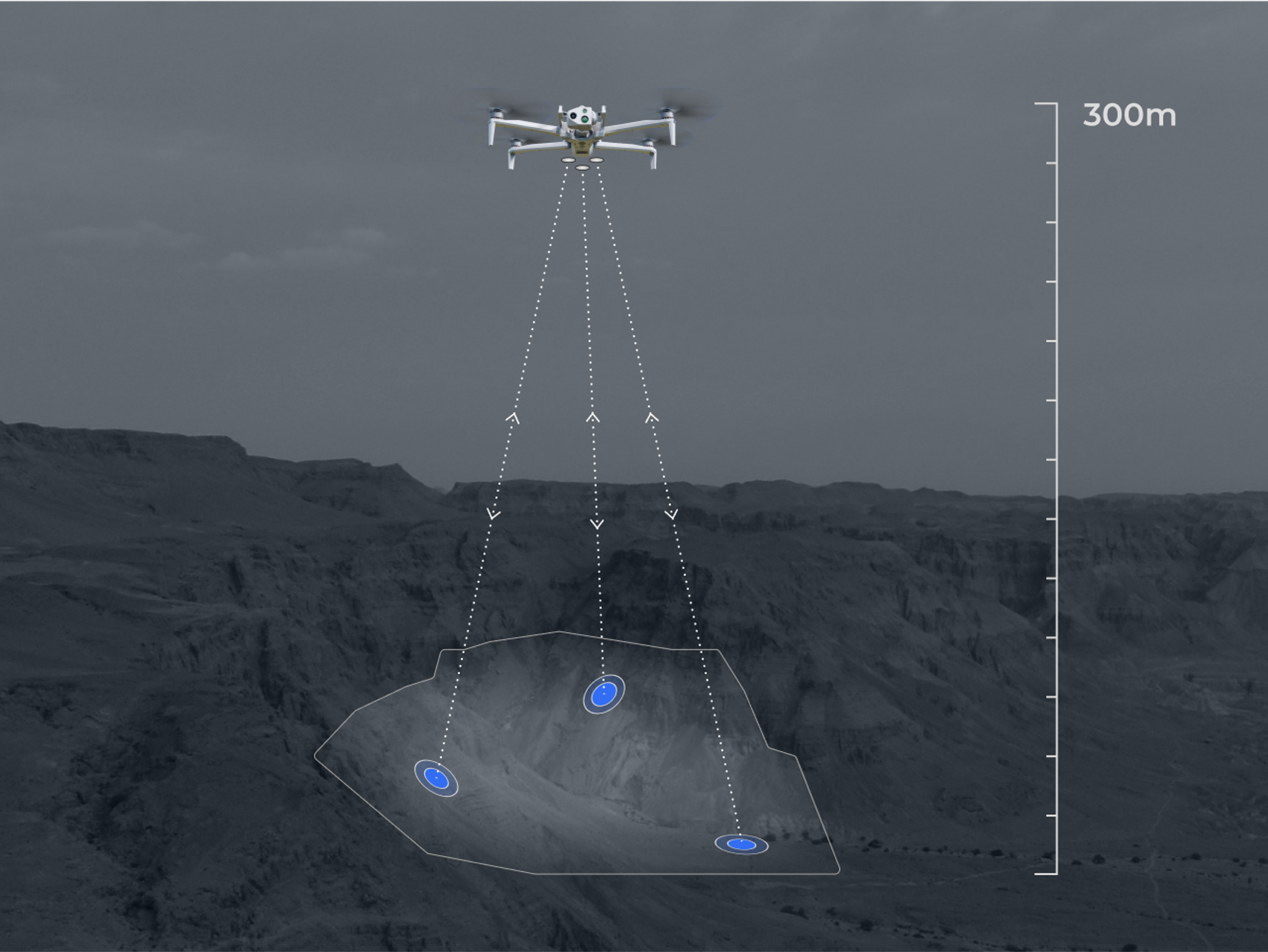

Onboard Modeling

View 2D/3D models in real time.

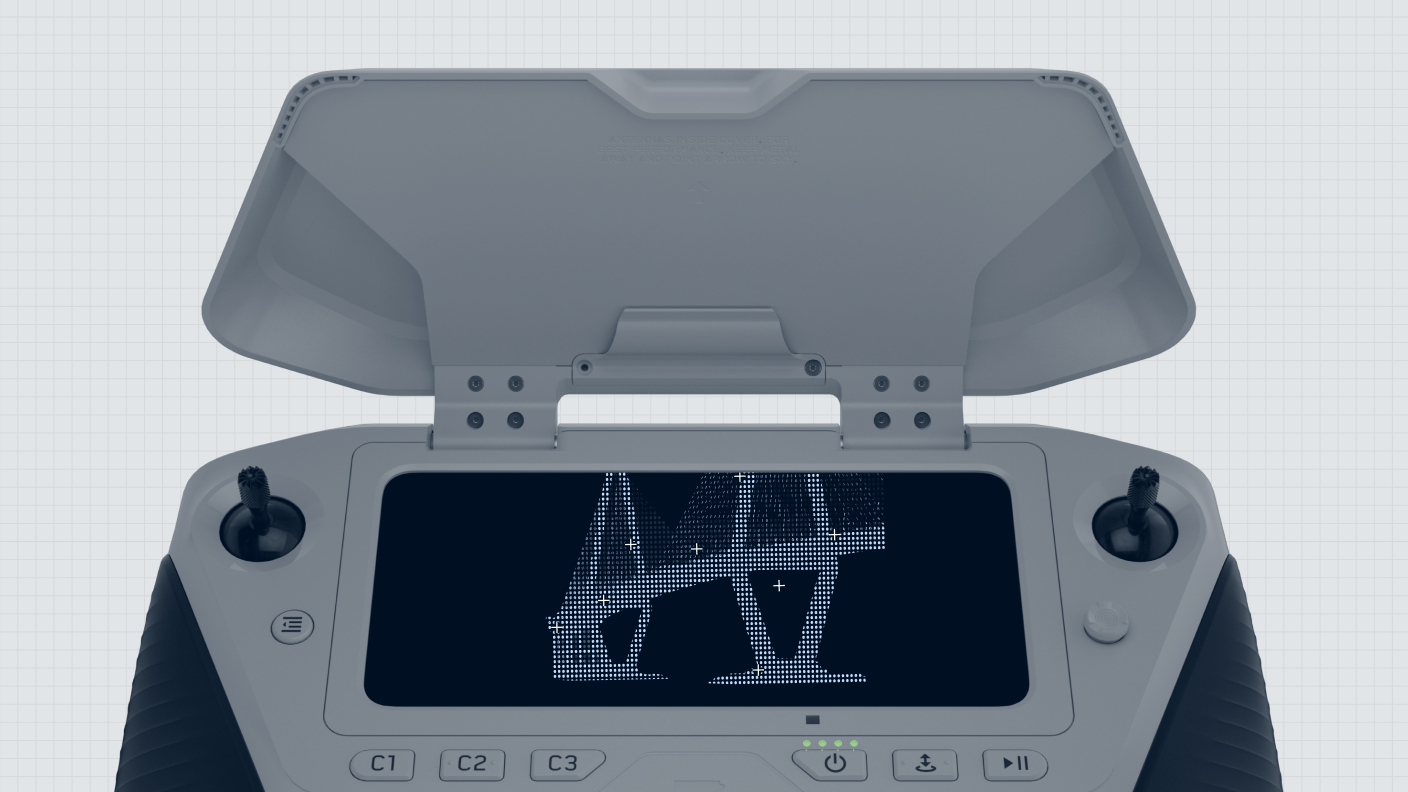

Skydio drone controller with 3D capture of a bridge on screen
Read
Explore Skydio Apps

An open modular platform

Skydio X10D is an open, modular platform, ready for additional payload options. RAS-A compliance and open MAVLINK protocol enable third party and government owned flight application software, and modular connector ports allow operators to quickly swap attachments in the field.

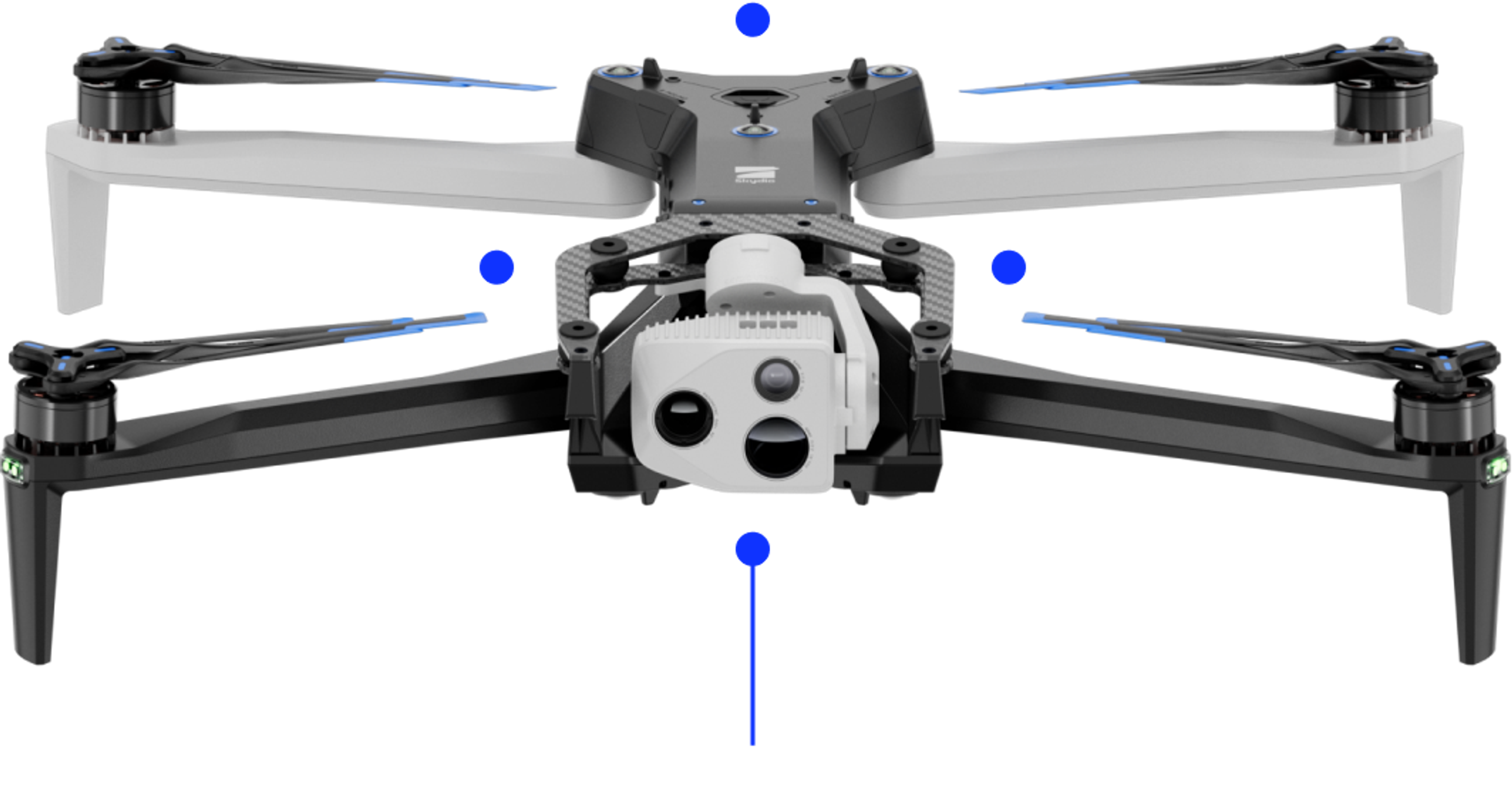

Skydio X10 drone Skydio X10 drone

Top attachment

Left attachment

Bottom attachment

Right attachment

4 attachment areas:
top, bottom, left and right.

Customize for your mission

Start with Skydio attachments

spotlight attachment for Skydio X10 drone

Spotlight
Improve visibility during nighttime operations.

speaker attachment for Skydio X10 drone

Speaker
Communicate and coordinate in high-risk situations.

parachute attachment for Skydio X10 drone

Parachute
Designed to meet requirements for safe flying over people.
Coming soon

RTK/PPK attachment for Skydio X10 surveying and mapping drone

RTK/PPK GPS
Get exceptional accuracy for precision mapping and data collection.

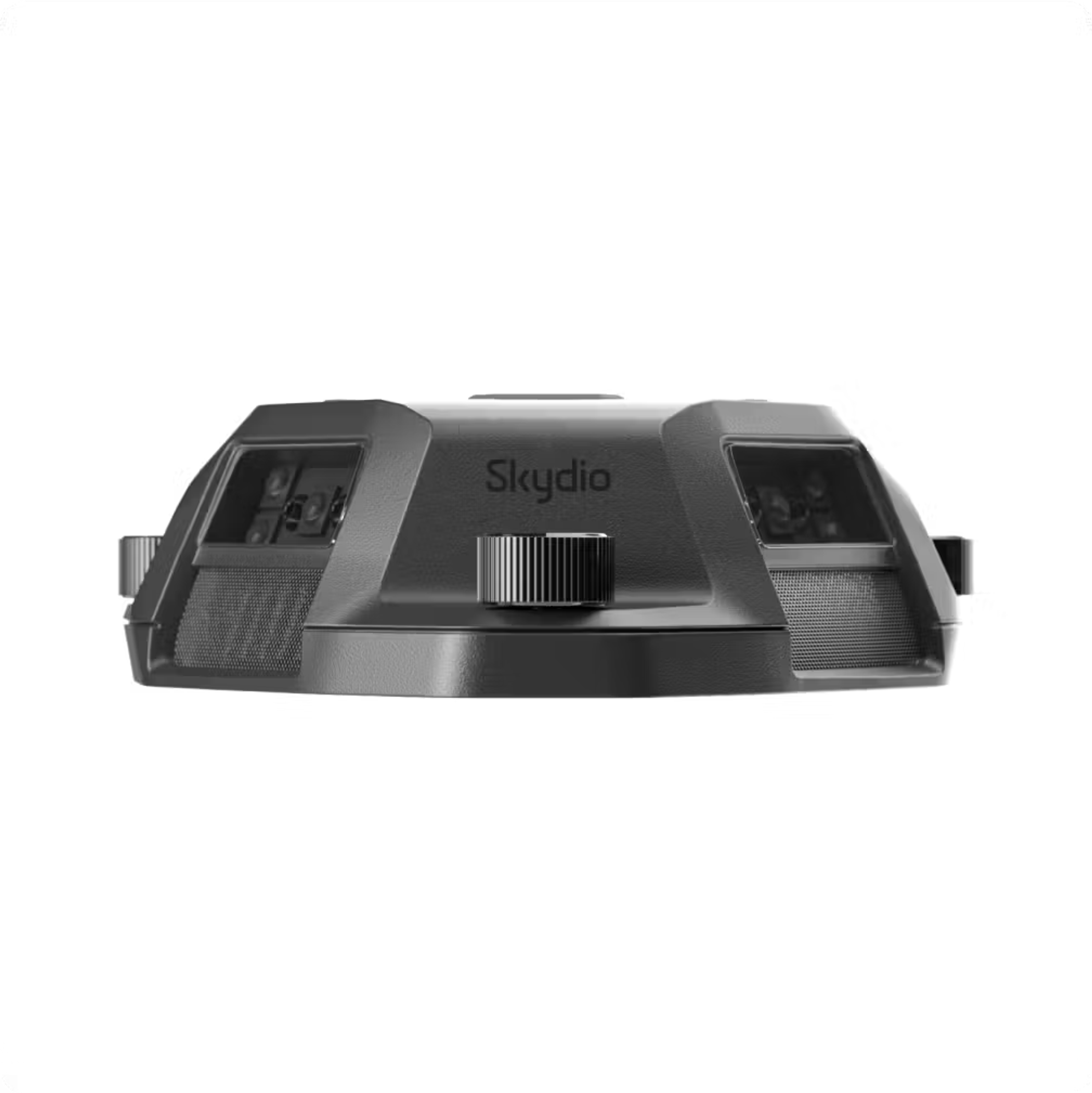

NightSense attachment for Skydio X10 drone and Skydio X10D drone

NightSense Visible/IR light
Conduct autonomous flight in the dark.

Ready for anything, anytime, anywhere

Designed from the ground up to bring the performance of a heavy drone to a rucksack portable device. The X10D folds into the most compact size of any drone with similar sensors, truly enabling distributed and dispersed operations.

folded Skydio X10 drone on black background

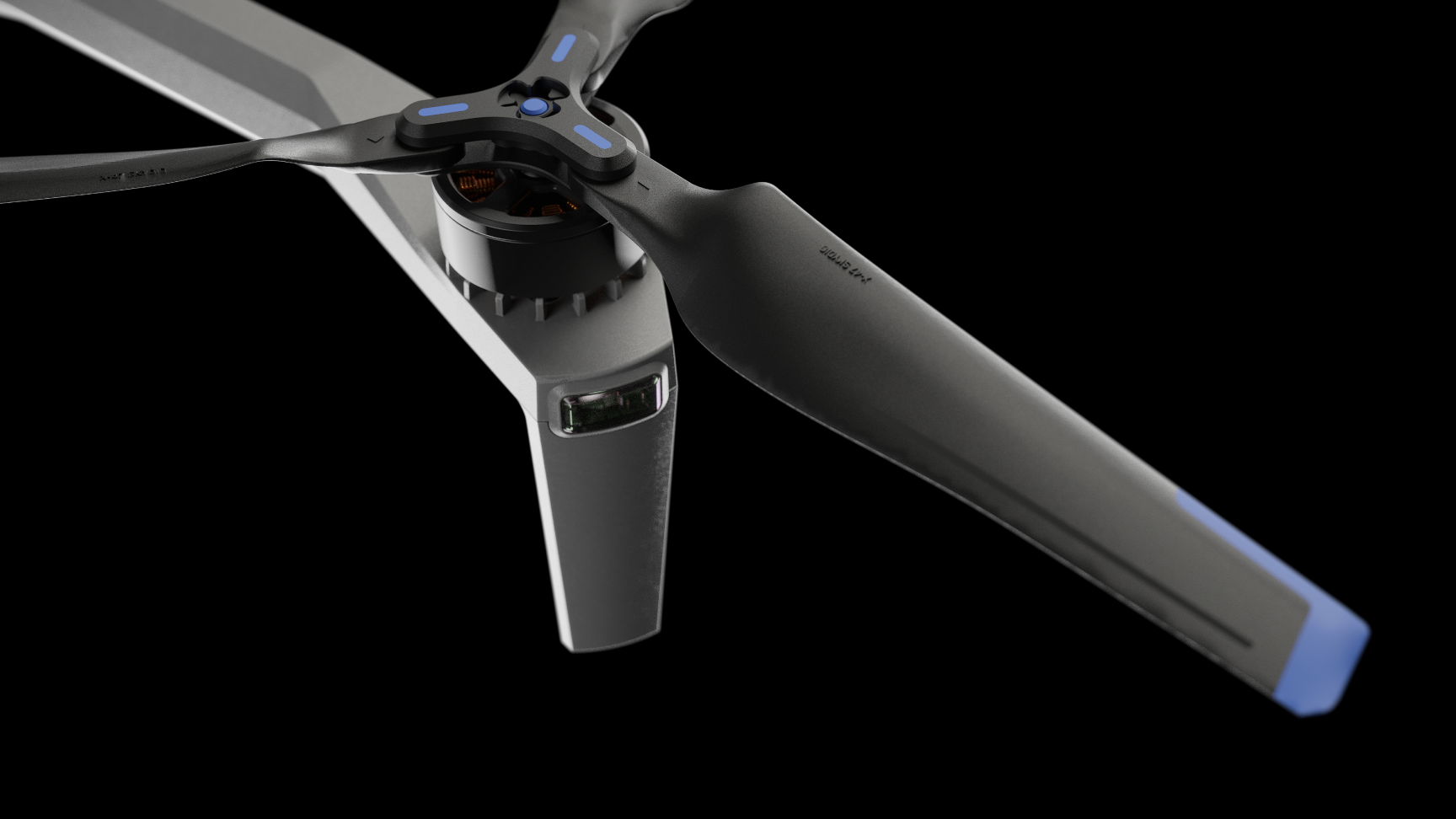

skydio z1 blades

Quiet propulsion. The efficient motors and folding 3-blade design of the Skydio X10 delivers a quiet flight profile while allowing for top speeds of up to 45 mph in stable air.

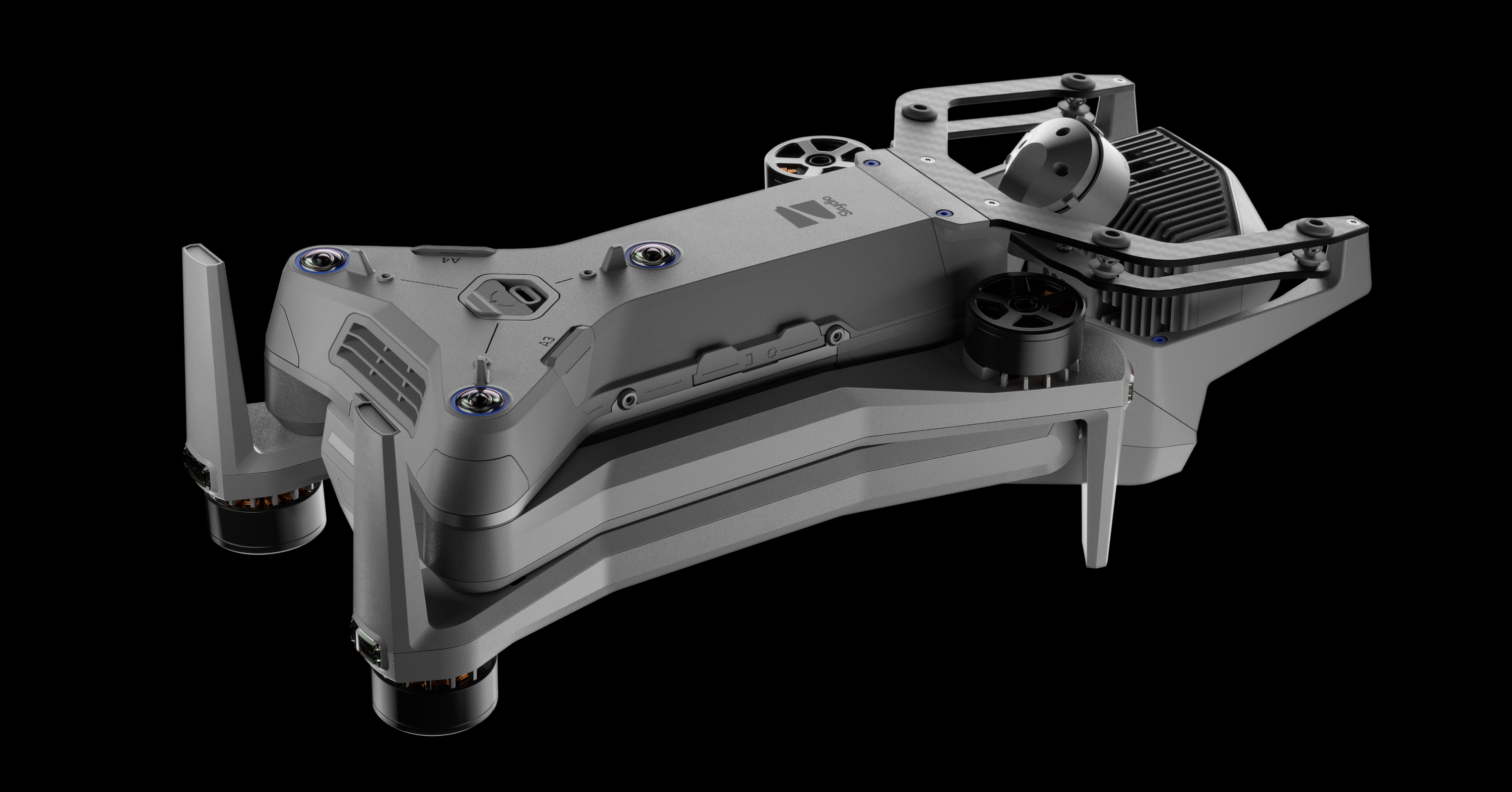

skydio z1 underside of drone

Lightweight materials. A lightweight and durable magnesium and carbon fiber frame, coupled with an innovative graphite heat-spreading system, ensures the Skydio X10 can withstand harsh environments to deliver vital aerial intelligence, anytime.

Withstand wind, rain, dust.
And the unexpected.

Always in its element.

water drop icon

Water and dust. Ingress protection: IP55 certified against dust, water and the unexpected.

wind icon

Wind. Max gust handling: 28.6 mph / 43 kmh

snowflake icon

Cold and heat. Operational temperatures:
-4° to 113°F / -20° to 45°C

drone icon

Altitude. Service ceiling: 15,000 ft / 4.57 km

Safeguard your data
with end-to-end security

person in server room

Deep dive into specs

View technical specs
skydio z1 drone folded up

Secure by design.

padlock icon

AES 256 wi-fi encryption. Communicates using secure AES-encrypted wireless links.

Fully offline system. No reliance on cloud applications.


shield icon

Secure boot. HSM-based root of trust.

American flag icon

NDAA Compliant. Designed, assembled, and supported in the U.S., with trusted manufacturing partners and secure development practices.

Explore Security Trust Center
